From blue and yellow
to green!

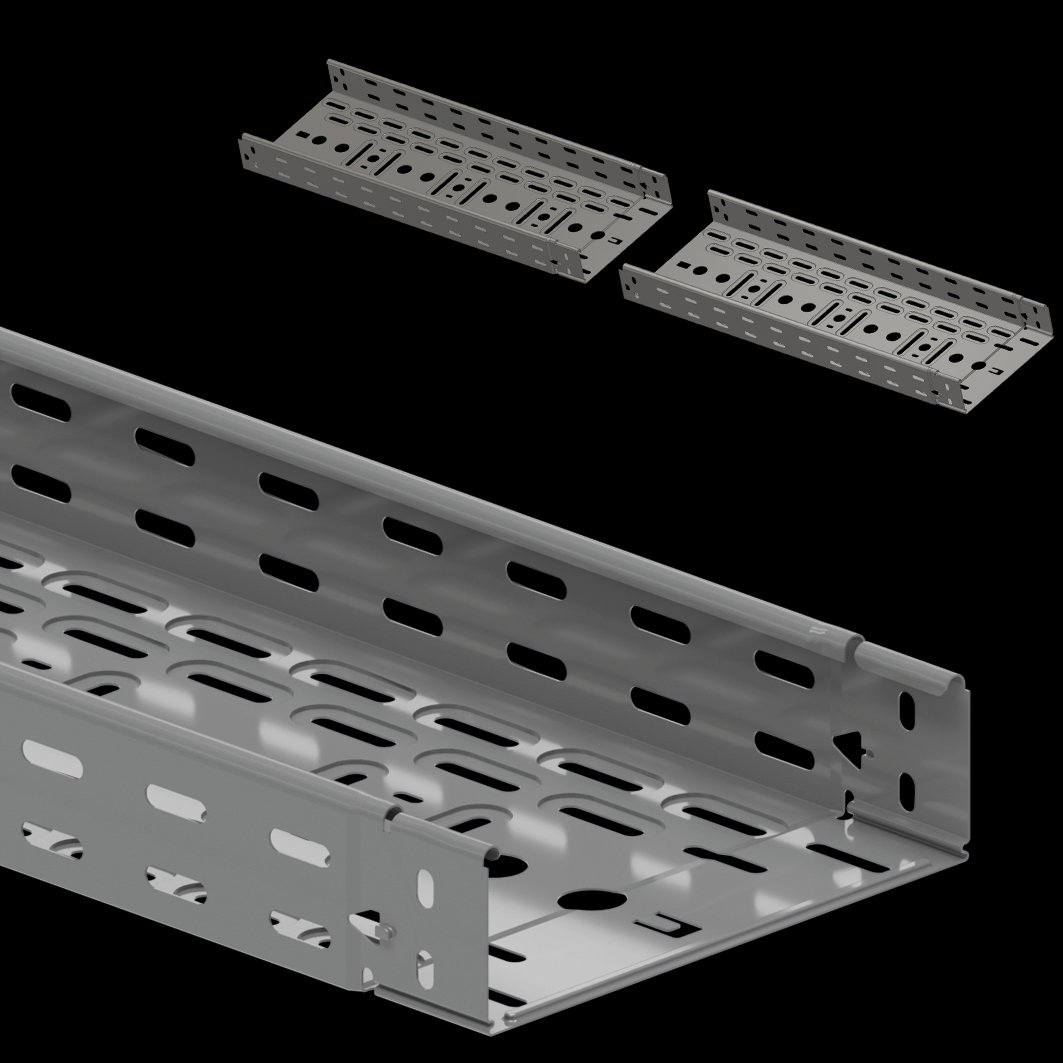

KBLS - Quick installation cable tray

Quickly finished made easy!

Our innovative new cable tray is easily inserted and locked in place without an additional connection mounted with screws or clips.

The zinc-magnesium (ZM) version is also new, thanks to it’s novel chemical composition offers corrosion resistance equivalent to hot-dip galvanizing, but at a lower price is significantly more attractive.

From now on all cable trays KBLS 60 up to width 400 mm are available at our stock.

By the way: the new KBLS 60 is compatible with our previous version KBL 60, all accessories can still be used.

All advantages at a glance

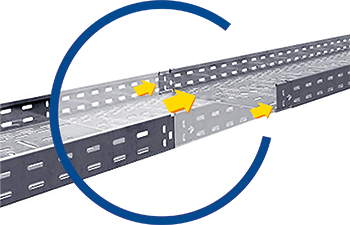

Fast - Just snap in and the connection is ready
Stable - Just as stable as a screw connection
Reliable - Maximum load even with click connection
Inexpensive - Faster processing saves time and costs
Wide assortment incl. accessories available from stock
New ZM version - Economical solution also for increased corrosion protection
Also for function maintenance

Punched perforation for

Better stability
Better cooling

Longitudinal and transverse perforation for

Easy attachment to the bracket
Practical bundling of cables

Dokumente

Licatec--Flyer--KBLS--2020-10-09.pdf

KBLS Sendziemirverzinkt

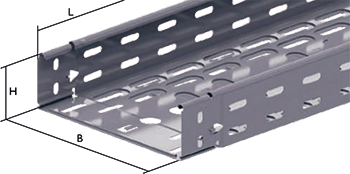

Typ Type	H	B	L	Materialstärke Thickness	Artikel-Nr. Article-No.
KBLS60.75.075	60	75	3.000	0,75	8001020
KBLS60.75.100	60	75	3.000	1,00	8001680
KBLS60.100.075	60	100	3.000	0,75	8001010
KBLS60.100.100	60	100	3.000	1,00	8001700
KBLS60.150.075	60	150	3.000	0,75	8001420
KBLS60.150.100	60	150	3.000	1,00	8001710
KBLS60.200.075	60	200	3.000	0,75	8001030
KBLS60.200.100	60	200	3.000	1,00	8001730
KBLS60.300.075	60	300	3.000	0,75	8001050
KBLS60.300.100	60	300	3.000	1,00	8001770
KBLS60.400.100	60	400	3.000	1,00	8001120

KBLS Zink-Magnesium

Typ Type	H	B	L	Materialstärke Thickness	Artikel-Nr. Article-No.
ZMKBLS60.75.075	60	75	3.000	0,75	8001020.ZM
ZMKBLS60.75.100	60	75	3.000	1,00	8001680.ZM
ZMKBLS60.100.075	60	100	3.000	0,75	8001010.ZM
ZMKBLS60.100.100	60	100	3.000	1,00	8001700.ZM
ZMKBLS60.150.075	60	150	3.000	0,75	8001420.ZM
ZMKBLS60.150.100	60	150	3.000	1,00	8001710.ZM
ZMKBLS60.200.075	60	200	3.000	0,75	8001030.ZM
ZMKBLS60.200.100	60	200	3.000	1,00	8001730.ZM
ZMKBLS60.300.075	60	300	3.000	0,75	8001050.ZM
ZMKBLS60.300.100	60	300	3.000	1,00	8001770.ZM
ZMKBLS60.400.100	60	400	3.000	1,00	8001120.ZM
