GTIP 166.4.WI.LED-S DALI /66W IP54 400mA/11060lm/4000K/90° 1535mm/RA>80/mit DV 7x1,5mm²

Geräteträger Lichtbandsystem IP54 - GTIP 90°

Length: 1535 mm, Colour temperature: 4000 K, Max. system power: 66 W, Rated luminous flux according to IEC 62722-2- 1: 11061 lm, Beam angle: 90 °

Product nr.: 290085DALI

See all versions

Rated luminous flux according to IEC 62722-2- 1

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

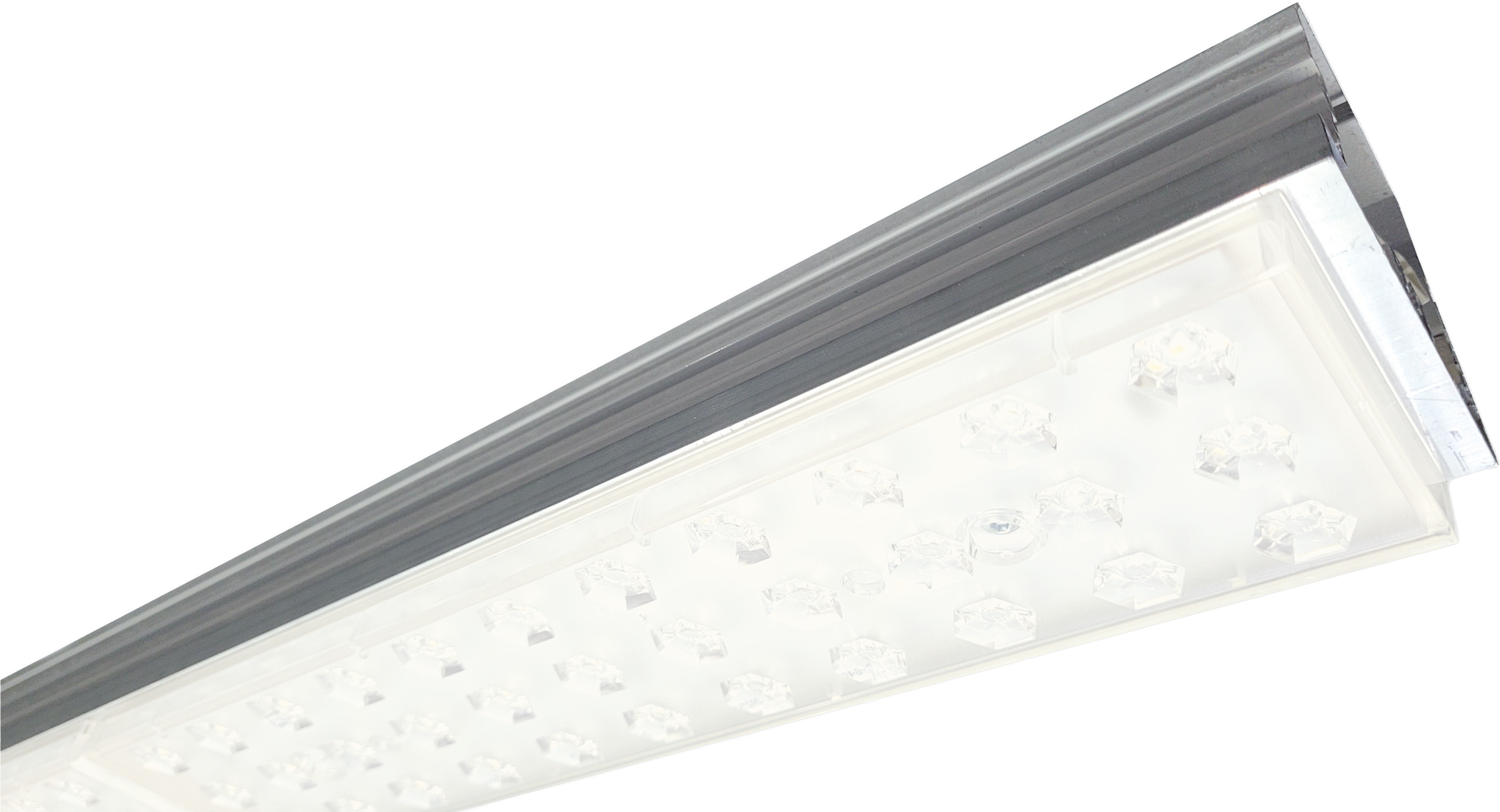

Modulares Schnellmontage-Lichtbandsystem

Überzeugt durch einfache Montage, hohe Lichtqualität und vielfältige Konfigurationsmöglich-keiten
Hochwertige 3-reihige Einzllinsen für gezielte Lichtlenkung und höchste Effizienz
Homogene Lichtverteilung bei maximaler Entblendung
Vielfältige Optionen für individuelle Anpassungen und smarte Lichtsteuerung (auf Anfrage)

Special features

Surface-mounted luminaire

Color-Rendering-Index CRI-80

Lifespan 50000-L80

LED

Pendant

Risk group RG-1

Color Consistency SDCM-3

Ambient temperature -25°

Technical specifications

General

ETIM-class:

Electrical unit for linear/light-line system

Lamp type:

LED exchangeable

Housing material:

Aluminium

Housing colour:

Aluminium

Voltage type:

AC/DC

Type of control gear:

LED operating device current-controlled

Light distributor:

Diffuser lens/optic/panel

Reflector:

None

Light distribution:

Symmetric

Light outlet:

Direct

Beam angle:

> 80° - Extreme wide beam

Colour consistency (McAdam ellipse):

SDCM3

Energy efficiency class of the light source according to EU regulation 2019/2015:

Degree of protection (IP):

IP54

Protection class according to IEC 61140:

Filament test according to IEC 60695-2-11:

650 °C - 30 s

Emergency power supply system:

Central (central battery)

Colour rendering index CRI:

80-89

Beam angle adjustable:

Colour of light adjustable:

Luminous flux adjustable:

Type of wiring:

Ending

Connection type:

Blade terminal

Rated lifetime L70/B50 at 25 °C:

50000 h

Colour temperature:

4000 K

Beam angle:

90 °

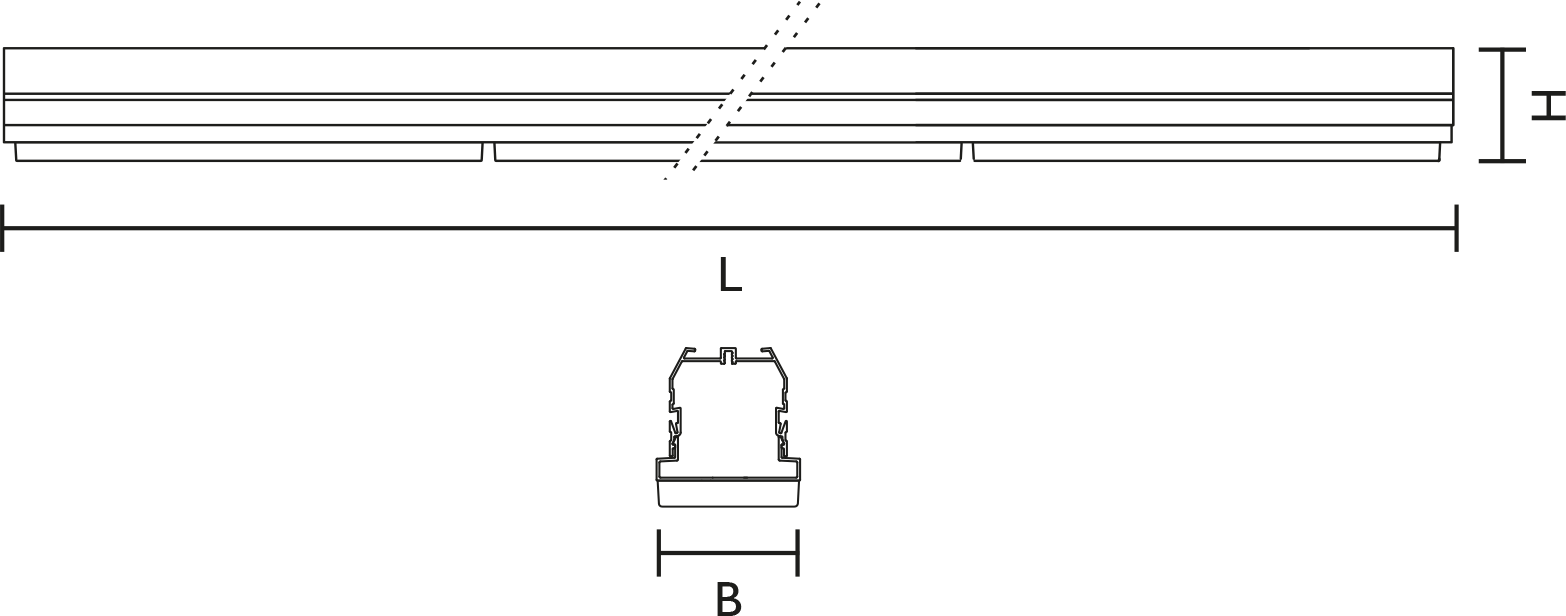

Width:

65 mm

Height/depth:

33 mm

Length:

1535 mm

Max. system power:

66 W

Conductor cross section:

0,5 mm²

Rated luminous flux according to IEC 62722-2- 1:

11061 lm

All versions

Type	Colour temperature	Beam angle	Length	Max. system power	Rated luminous flux according to IEC 62722-2- 1	Product nr.
Type GTIP 166.4.WI.LED-S DALI /66W IP54 400mA/11060lm/4000K/90° 1535mm/RA>80/mit DV 7x1,5mm²	Colour temperature 4000 K	Beam angle 90 °	Length 1535 mm	Max. system power 66 W	Rated luminous flux according to IEC 62722-2- 1 11061 lm	Product nr. 290085DALI
GTIP 166.4.WI.LED-S DALI /66W IP54 400mA/11060lm/4000K/90° 1535mm/RA>80/mit DV 7x1,5mm² Length: 1535 mm, Colour temperature: 4000 K, Max. system power: 66 W, Rated luminous flux according to IEC 62722-2- 1: 11061 lm, Beam angle: 90 ° Product-Nr.: 290085DALI Length: 1535 mm Colour temperature: 4000 K Max. system power: 66 W Rated luminous flux according to IEC 62722-2- 1: 11061 lm Beam angle: 90 ° Price only for registered users Log in To product

Type GTIP 166.4.WI.LED-S 66W IP54 400mA/11060lm/4000K/90° 1535mm/RA>80/ohne DV	Colour temperature 4000 K	Beam angle 90 °	Length 1535 mm	Max. system power 66 W	Rated luminous flux according to IEC 62722-2- 1 11060 lm	Product nr. 290085-2
GTIP 166.4.WI.LED-S 66W IP54 400mA/11060lm/4000K/90° 1535mm/RA>80/ohne DV Length: 1535 mm, Colour temperature: 4000 K, Max. system power: 66 W, Rated luminous flux according to IEC 62722-2- 1: 11060 lm, Beam angle: 90 ° Product-Nr.: 290085-2 Length: 1535 mm Colour temperature: 4000 K Max. system power: 66 W Rated luminous flux according to IEC 62722-2- 1: 11060 lm Beam angle: 90 ° Price only for registered users Log in To product
