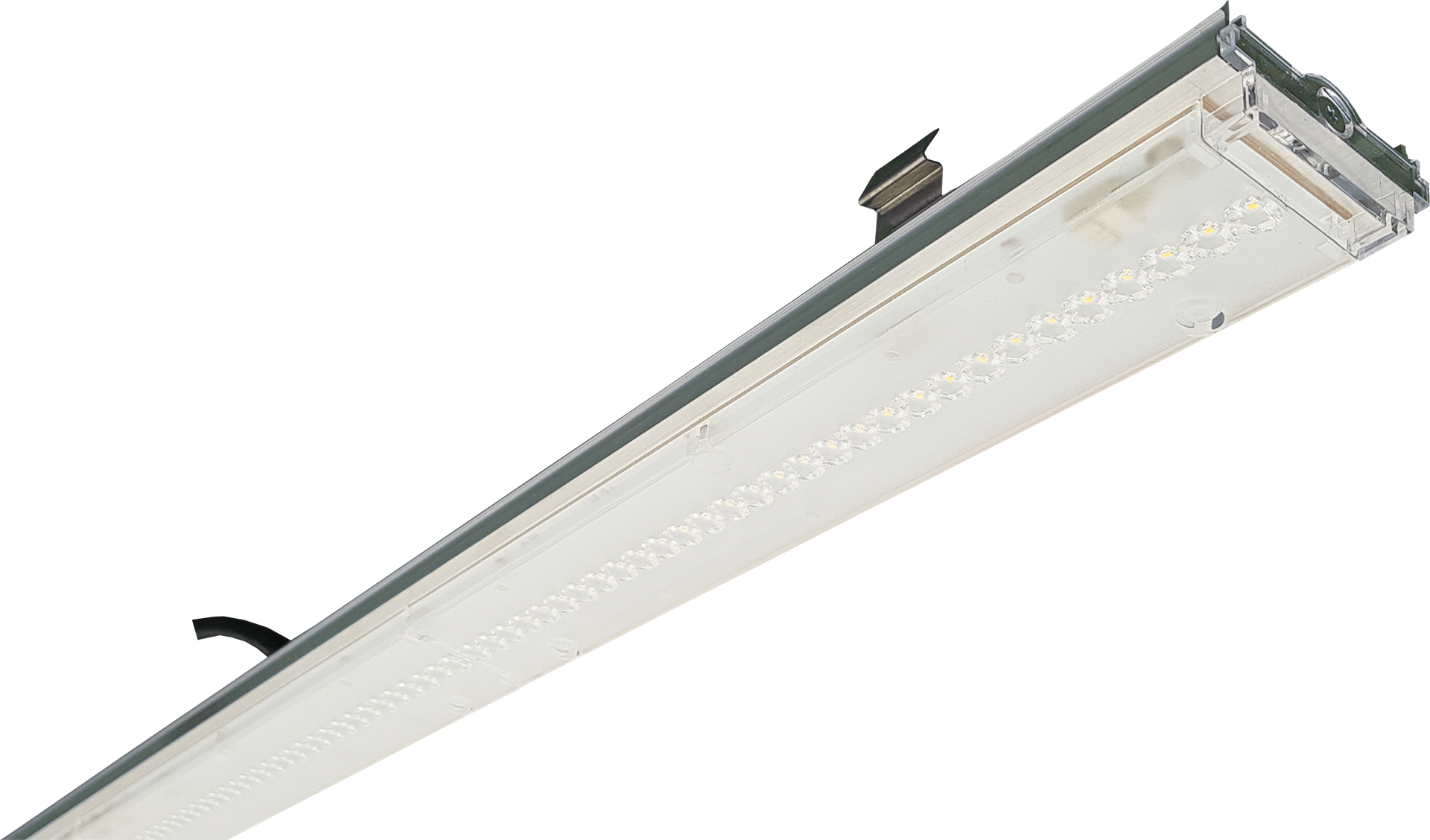

Geräteträger137.4.WI.LED-S G4 37W/500mA/6330lm/4000K/60° 1426mm/RA>80/ohne DV

Geräteträger Lichtbandsystem - LBG 60°

Length: 1426 mm, Colour temperature: 4000 K, Max. system power: 37 W, Rated luminous flux according to IEC 62722-2- 1: 6330 lm, Beam angle: 60 °

Product nr.: 288045-2

See all versions

Max. system power

Rated luminous flux according to IEC 62722-2- 1

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

Modulares Schnellmontage-Lichtbandsystem

Überzeugt durch einfache Montage, hohe Lichtqualität und vielfältige Konfigurationsmöglich-keiten
Modernste LED-Module in Verbindung mit hochwertigen PMMA-Einzellinsen sorgen für höchste Effizienz und gezielte Lichtlenkung
Homogene Lichtverteilung bei maximaler Entblendung
Vielfältige Optionen für individuelle Anpassungen und smarte Lichtsteuerung (auf Anfrage)

Special features

Surface-mounted luminaire

Connected loads 220-240 V, 0-50-60 Hz

Color-Rendering-Index CRI-80

ENEC

IP-40l

Lifespan 60000-L80

LED

Pendant

Risk group RG-1

Color Consistency SDCM-3

Technical specifications

General

ETIM-class:

Electrical unit for linear/light-line system

Lamp type:

LED exchangeable

Lamp holder:

None

Housing material:

Aluminium

Housing colour:

Aluminium

Voltage type:

AC/DC

Type of control gear:

LED operating device current-controlled

Light distributor:

Diffuser lens/optic/panel

Reflector:

None

Light distribution:

Symmetric

Light outlet:

Direct

Beam angle:

41-80° - Wide beam

Colour consistency (McAdam ellipse):

SDCM3

Energy efficiency class of the light source according to EU regulation 2019/2015:

Degree of protection (IP):

IP40

Protection class according to IEC 61140:

Filament test according to IEC 60695-2-11:

650 °C - 30 s

Emergency power supply system:

Central (central battery)

Emergency function monitoring system:

None

Colour rendering index CRI:

80-89

Beam angle adjustable:

Colour of light adjustable:

Luminous flux adjustable:

Type of wiring:

Ending

Connection type:

Blade terminal

Rated lifetime L70/B50 at 25 °C:

50000 h

Length:

1426 mm

Colour temperature:

4000 K

Width:

53 mm

Height/depth:

25 mm

Max. system power:

37 W

Rated luminous flux according to IEC 62722-2- 1:

6330 lm

Beam angle:

60 °

All versions

Type	Length	Colour temperature	Max. system power	Rated luminous flux according to IEC 62722-2- 1	Beam angle	Product nr.
Type Geräteträger178.4.WI.LED-S G4 78W/1000mA/12190lm/4000K/60° 1426mm/RA>80/ohne DV	Length 1426 mm	Colour temperature 4000 K	Max. system power 78 W	Rated luminous flux according to IEC 62722-2- 1 12190 lm	Beam angle 60 °	Product nr. 288165-2
Geräteträger178.4.WI.LED-S G4 78W/1000mA/12190lm/4000K/60° 1426mm/RA>80/ohne DV Length: 1426 mm, Colour temperature: 4000 K, Max. system power: 78 W, Rated luminous flux according to IEC 62722-2- 1: 12190 lm, Beam angle: 60 ° Product-Nr.: 288165-2 Length: 1426 mm Colour temperature: 4000 K Max. system power: 78 W Rated luminous flux according to IEC 62722-2- 1: 12190 lm Beam angle: 60 ° Price only for registered users Log in To product

Type Geräteträger137.4.WI.LED-S G4 37W/500mA/6330lm/4000K/60° 1426mm/RA>80/ohne DV	Length 1426 mm	Colour temperature 4000 K	Max. system power 37 W	Rated luminous flux according to IEC 62722-2- 1 6330 lm	Beam angle 60 °	Product nr. 288045-2
Geräteträger137.4.WI.LED-S G4 37W/500mA/6330lm/4000K/60° 1426mm/RA>80/ohne DV Length: 1426 mm, Colour temperature: 4000 K, Max. system power: 37 W, Rated luminous flux according to IEC 62722-2- 1: 6330 lm, Beam angle: 60 ° Product-Nr.: 288045-2 Length: 1426 mm Colour temperature: 4000 K Max. system power: 37 W Rated luminous flux according to IEC 62722-2- 1: 6330 lm Beam angle: 60 ° Price only for registered users Log in To product

Type Geräteträger152.4.WI.LED-S G4 52W/700mA/8710lm/4000K/60° 1426mm/RA>80/ohne DV	Length 1426 mm	Colour temperature 4000 K	Max. system power 52 W	Rated luminous flux according to IEC 62722-2- 1 8710 lm	Beam angle 60 °	Product nr. 288085-2
Geräteträger152.4.WI.LED-S G4 52W/700mA/8710lm/4000K/60° 1426mm/RA>80/ohne DV Length: 1426 mm, Colour temperature: 4000 K, Max. system power: 52 W, Rated luminous flux according to IEC 62722-2- 1: 8710 lm, Beam angle: 60 ° Product-Nr.: 288085-2 Length: 1426 mm Colour temperature: 4000 K Max. system power: 52 W Rated luminous flux according to IEC 62722-2- 1: 8710 lm Beam angle: 60 ° Price only for registered users Log in To product
