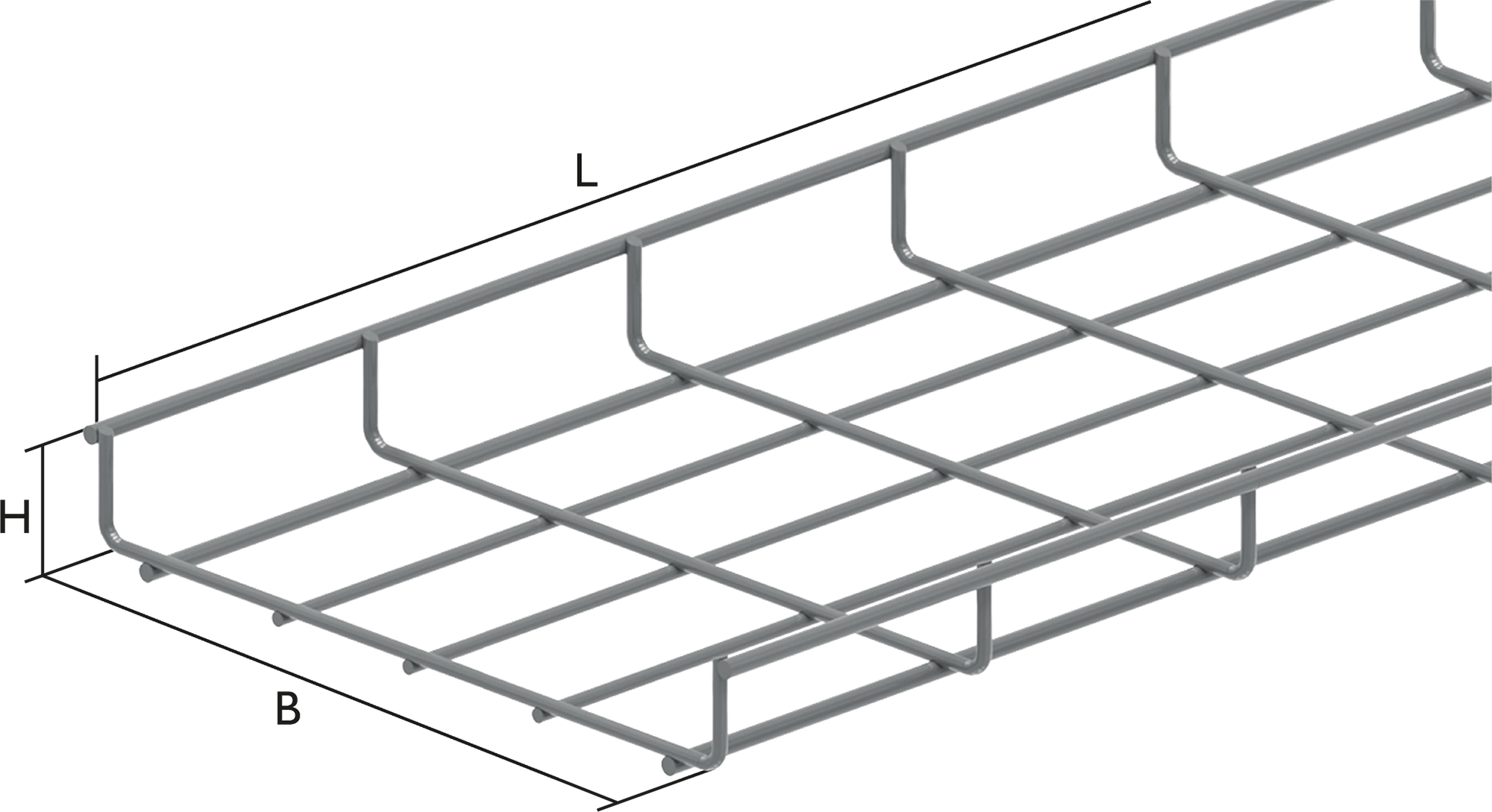

Gitterbahn GBL 3000x200x35 mm Drahtstärke 3,5/4,5 mm Sendzimirverzinkt

Gitterbahn GBL 35

Width: 200 mm

Product nr.: 803012L.V

See all versions

Width

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

Gitterbahn GBL 3000x100x35 mm Drahtstärke 3,5/4,5 mm feuerverzinkt

Technical specifications

General

ETIM-class:

Wire basket / mesh cable tray

Profile shape:

C-shape

Integrated partition:

None

Model:

Without connector

Type of connection:

Screwed

Material:

Steel

Material quality:

Other

Surface protection:

Galvanic/electrolytic zinc plated

Colour:

Zinc

Length:

3000 mm

Width:

200 mm

Height:

35 mm

Usable cross section:

7000 mm²

Diameter longitudinal wire:

4,5 mm

Diameter transverse wire:

3,5 mm

All versions

Type	Width	Product nr.
Type Gitterbahn GBL 3000x200x35 mm Drahtstärke 3,5/4,5 mm Sendzimirverzinkt	Width 200 mm	Product nr. 803012L.V
Gitterbahn GBL 3000x200x35 mm Drahtstärke 3,5/4,5 mm Sendzimirverzinkt Width: 200 mm Product-Nr.: 803012L.V Width: 200 mm Price only for registered users Log in To product

Type Gitterbahn GBL 3000x350x35 mm Drahtstärke 3,5/4,5 mm Sendzimirverzinkt	Width 350 mm	Product nr. 803014L.V
Gitterbahn GBL 3000x350x35 mm Drahtstärke 3,5/4,5 mm Sendzimirverzinkt Width: 350 mm Product-Nr.: 803014L.V Width: 350 mm Price only for registered users Log in To product

Type Gitterbahn GBL 3000x150x35 mm Drahtstärke 3,5/4,5 mm Sendzimirverzinkt	Width 150 mm	Product nr. 803011L.V
Gitterbahn GBL 3000x150x35 mm Drahtstärke 3,5/4,5 mm Sendzimirverzinkt Width: 150 mm Product-Nr.: 803011L.V Width: 150 mm Price only for registered users Log in To product

Type Gitterbahn GBL 3000x250x35 mm Drahtstärke 3,5/4,5 mm Sendzimirverzinkt	Width 250 mm	Product nr. 803013L.V
Gitterbahn GBL 3000x250x35 mm Drahtstärke 3,5/4,5 mm Sendzimirverzinkt Width: 250 mm Product-Nr.: 803013L.V Width: 250 mm Price only for registered users Log in To product

Type Gitterbahn GBL 3000x100x35 mm Drahtstärke 3,5/4,5 mm Sendzimirverzinkt	Width 100 mm	Product nr. 803010L.V
Gitterbahn GBL 3000x100x35 mm Drahtstärke 3,5/4,5 mm Sendzimirverzinkt Width: 100 mm Product-Nr.: 803010L.V Width: 100 mm Price only for registered users Log in To product
