LED-Anbauleuchte TSL-BWS 50.4 50W/6150lm/4000K/PR-HG 1226x274x65mm/ballwurfsicher

Datenblatt_LED_Sporthallen_Anbauleuchte___TSL_BWS__de_en_2021_08.pdf Montageanleitung_LED_Sporthallen_Anbauleuchte___TSL_BWS__de_en__2021_08.pdf

Sporthallenleuchten - TSL-BWS

Width: 274 mm, Length: 1226 mm, Colour temperature: 4000 K, Max. system power: 50 W, Rated luminous flux according to IEC 62722-2- 1: 6150 lm

Product nr.: PL3750922-2

See all versions

Width

Colour temperature

Max. system power

Rated luminous flux according to IEC 62722-2- 1

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

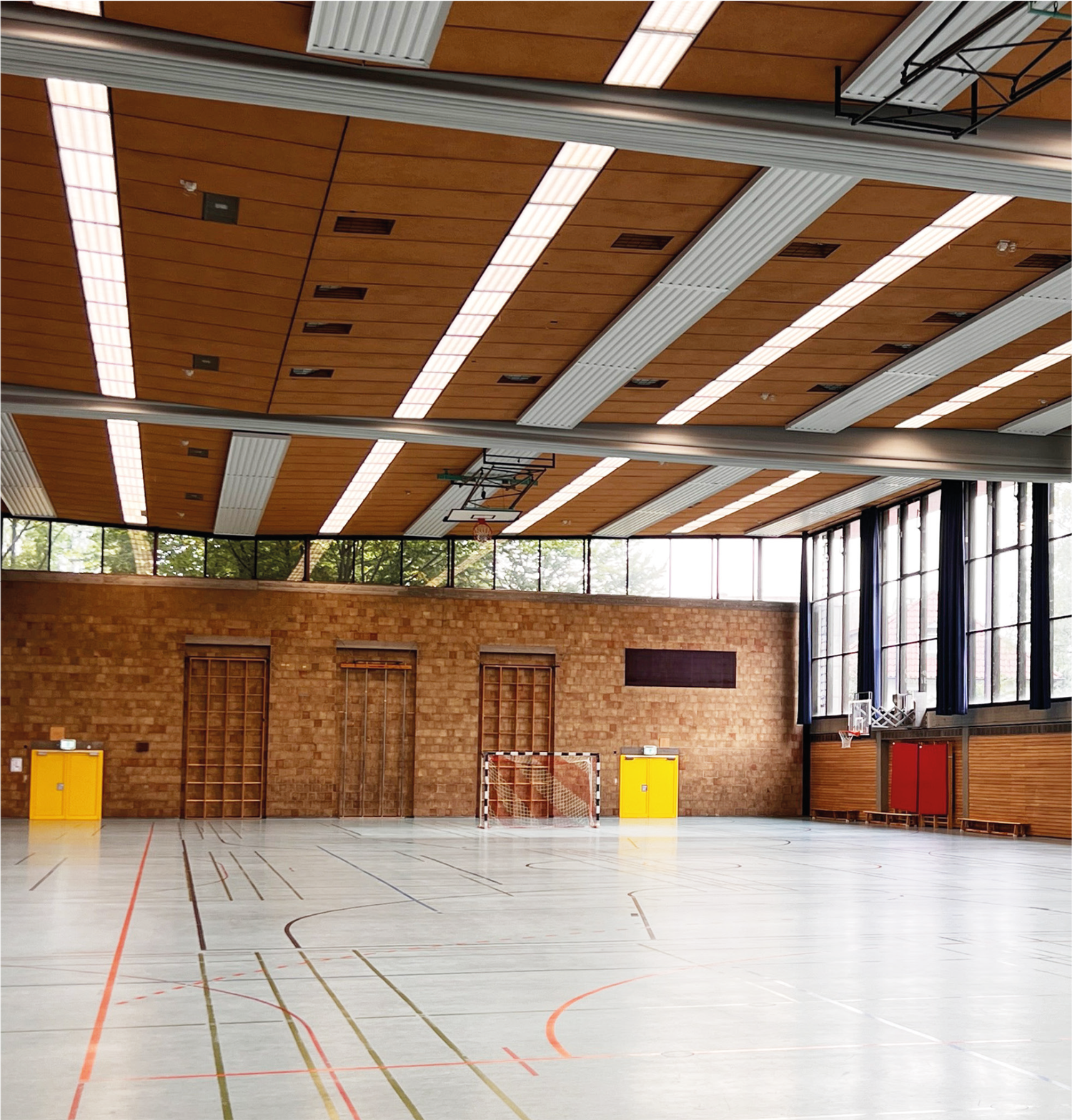

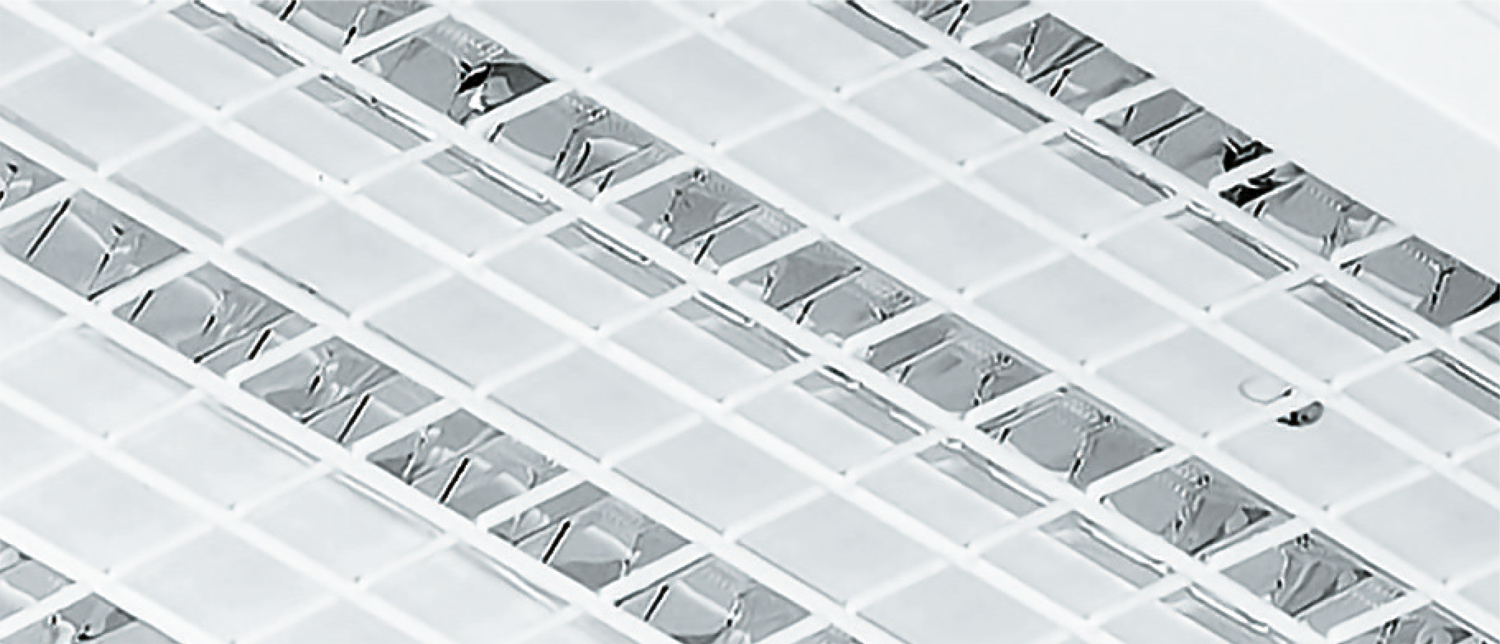

Robuste Anbauleuchte mit Gitterabdeckung – speziell für Sport- und Mehrzweckhallen

Ballwurfzertifizierung nach DIN 18032-3:1997-04 und DIN EN 13964:2014-8
Getestet für maximale Sicherheit bei sportlichen Aktivitäten
Hohe Lichtausbeute für gleichmäßige und normgerechte Hallenbeleuchtung
Optional DALI-dimmbar: für flexible Lichtsteuerung bei Veranstaltungen oder Training

Special features

Surface-mounted luminaire

Connected loads 220-240 V, 50-60 Hz

Ball Throw-Proof

Color-Rendering-Index CRI-80

IP-20

Lifespan 100000-L80

LED

Risk group RG-1

Impact Protection IK10

Color Consistency SDCM-3

Technical specifications

General

ETIM-class:

High bay luminaire

Lamp type:

LED exchangeable

Lamp holder:

None

Housing material:

Steel

Housing colour:

White

Voltage type:

Type of control gear:

LED operating device current-controlled

Light distributor:

Reflector

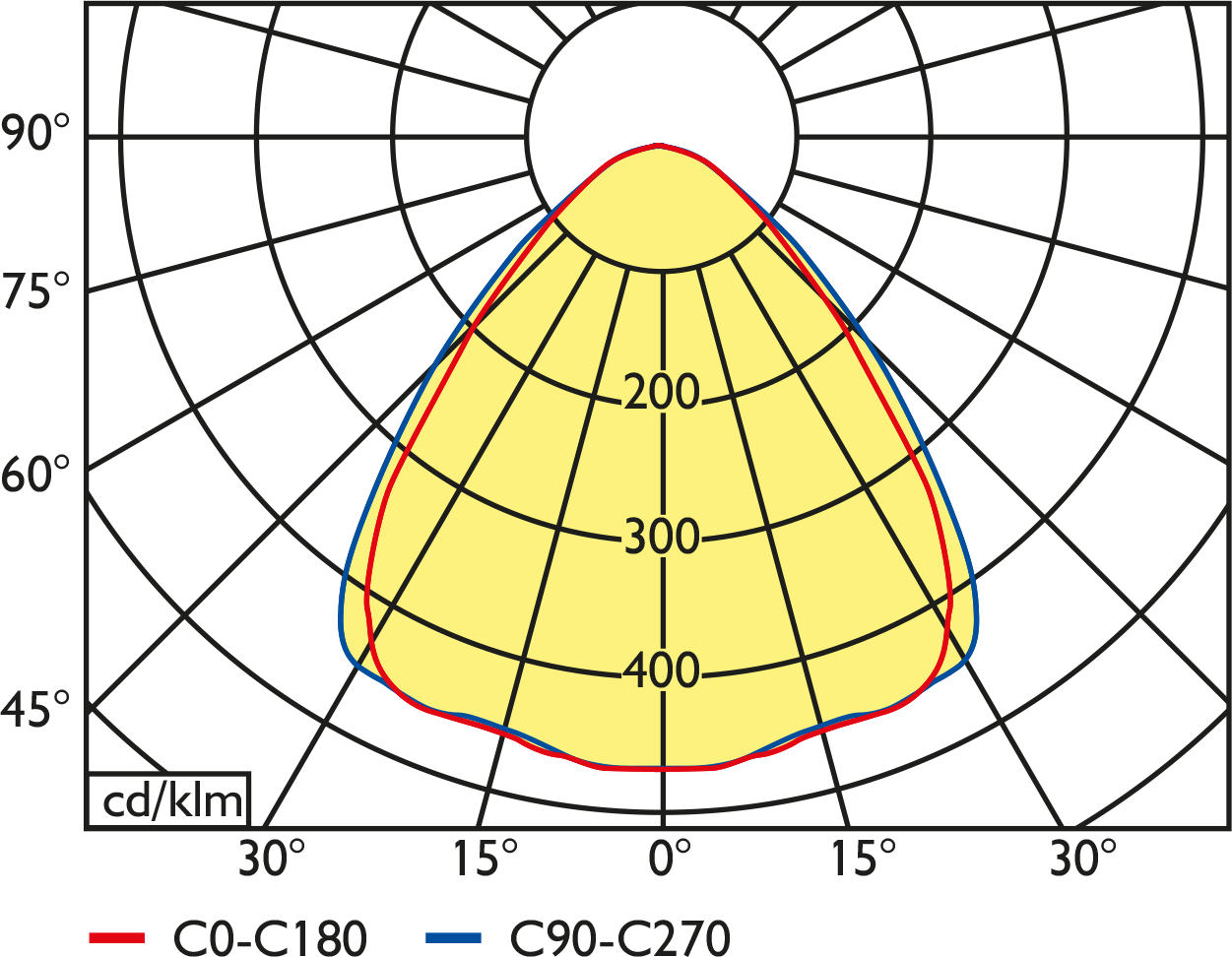

Light distribution:

Symmetric

Reflector:

None

Reflector colour:

Silver

Material reflector:

Aluminium

Beam angle:

41-80° - Wide beam

Colour consistency (McAdam ellipse):

SDCM3

Degree of protection (IP):

IP20

Impact strength:

IK10

Protection class according to IEC 61140:

Emergency function monitoring system:

None

Colour rendering index CRI:

80-89

Photobiological safety according to EN 62471:

RG1

Colour of light adjustable:

Beam angle adjustable:

Luminous flux adjustable:

Type of wiring:

Suitable for loop-through wiring

Connection type:

Push-in clamp

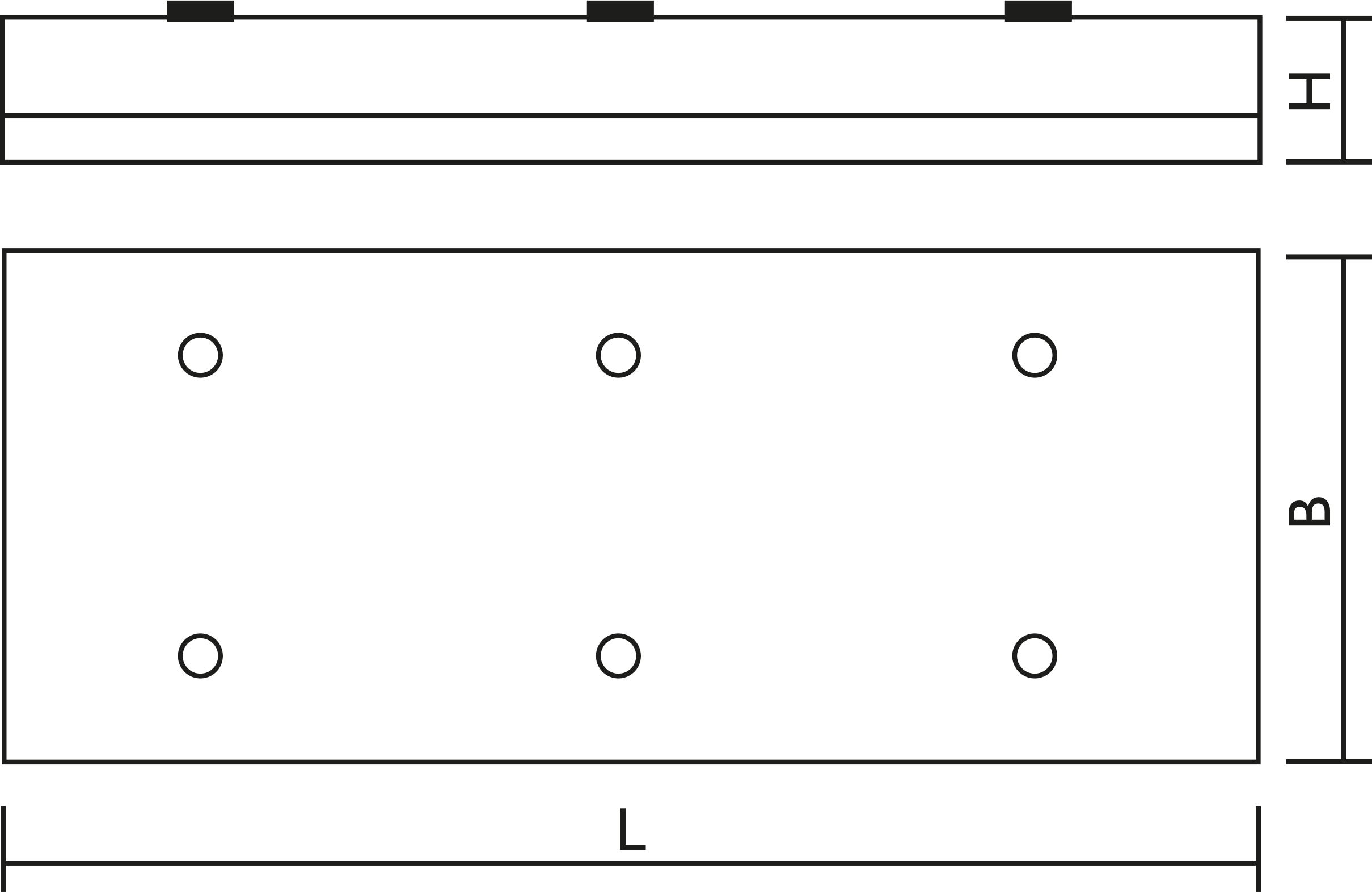

Height/depth:

65 mm

Rated lifetime L70/B50 at 25 °C:

50000 h

Width:

274 mm

Length:

1226 mm

Colour temperature:

4000 K

Max. system power:

50 W

Rated luminous flux according to IEC 62722-2- 1:

6150 lm

Downloads

Datenblatt_LED_Sporthallen_Anbauleuchte___TSL_BWS__de_en_2021_08.pdf Montageanleitung_LED_Sporthallen_Anbauleuchte___TSL_BWS__de_en__2021_08.pdf

All versions

Type	Width	Length	Colour temperature	Max. system power	Rated luminous flux according to IEC 62722-2- 1	Product nr.
Type LED-Anbauleuchte TSL-BWS 50.4 50W/6150lm/4000K/PR-HG 1226x274x65mm/ballwurfsicher	Width 274 mm	Length 1226 mm	Colour temperature 4000 K	Max. system power 50 W	Rated luminous flux according to IEC 62722-2- 1 6150 lm	Product nr. PL3750922-2
LED-Anbauleuchte TSL-BWS 50.4 50W/6150lm/4000K/PR-HG 1226x274x65mm/ballwurfsicher Width: 274 mm, Length: 1226 mm, Colour temperature: 4000 K, Max. system power: 50 W, Rated luminous flux according to IEC 62722-2- 1: 6150 lm Product-Nr.: PL3750922-2 Width: 274 mm Length: 1226 mm Colour temperature: 4000 K Max. system power: 50 W Rated luminous flux according to IEC 62722-2- 1: 6150 lm Price only for registered users Log in To product

Type LED-Anbauleuchte TSL-BWS 50.3 50W/6000lm/3000K/PR-HG 1226x274x65mm/ballwurfsicher	Width 274 mm	Length 1226 mm	Colour temperature 3000 K	Max. system power 50 W	Rated luminous flux according to IEC 62722-2- 1 6000 lm	Product nr. PL3750915-2
LED-Anbauleuchte TSL-BWS 50.3 50W/6000lm/3000K/PR-HG 1226x274x65mm/ballwurfsicher Width: 274 mm, Length: 1226 mm, Colour temperature: 3000 K, Max. system power: 50 W, Rated luminous flux according to IEC 62722-2- 1: 6000 lm Product-Nr.: PL3750915-2 Width: 274 mm Length: 1226 mm Colour temperature: 3000 K Max. system power: 50 W Rated luminous flux according to IEC 62722-2- 1: 6000 lm Price only for registered users Log in To product

Type LED-Anbauleuchte TSL-BWS 100.4 100W/12300lm/4000K/PR-HG 1226x486x65mm/ballwurfsicher	Width 486 mm	Length 1226 mm	Colour temperature 4000 K	Max. system power 100 W	Rated luminous flux according to IEC 62722-2- 1 12300 lm	Product nr. PL3750908-2
LED-Anbauleuchte TSL-BWS 100.4 100W/12300lm/4000K/PR-HG 1226x486x65mm/ballwurfsicher Width: 486 mm, Length: 1226 mm, Colour temperature: 4000 K, Max. system power: 100 W, Rated luminous flux according to IEC 62722-2- 1: 12300 lm Product-Nr.: PL3750908-2 Width: 486 mm Length: 1226 mm Colour temperature: 4000 K Max. system power: 100 W Rated luminous flux according to IEC 62722-2- 1: 12300 lm Price only for registered users Log in To product

Type LED-Anbauleuchte TSL-BWS 145.4 145W/20000lm/4000K/PR-HG 1226x486x65mm/ballwurfsicher	Width 486 mm	Length 1226 mm	Colour temperature 4000 K	Max. system power 145 W	Rated luminous flux according to IEC 62722-2- 1 20000 lm	Product nr. PL3750936-2
LED-Anbauleuchte TSL-BWS 145.4 145W/20000lm/4000K/PR-HG 1226x486x65mm/ballwurfsicher Width: 486 mm, Length: 1226 mm, Colour temperature: 4000 K, Max. system power: 145 W, Rated luminous flux according to IEC 62722-2- 1: 20000 lm Product-Nr.: PL3750936-2 Width: 486 mm Length: 1226 mm Colour temperature: 4000 K Max. system power: 145 W Rated luminous flux according to IEC 62722-2- 1: 20000 lm Price only for registered users Log in To product
