LED Backl.Panel MIB.4.23.MPRM 23W/3200lm/4000K/CRI>80 622x622x90 mm/M625/IP54

Montageanleitung_LED_Feuchtraum_Einlegeleuchte___MIB__de_en__2025_10.pdf

Einlegepanelleuchten - MIB

Width: 622 mm, Length: 622 mm, Material cover: Plastic, structured, Max. system power: 23 W, Rated luminous flux according to IEC 62722-2- 1: 3200 lm

Product nr.: LPL200079-3

See all versions

Material cover

Max. system power

Rated luminous flux according to IEC 62722-2- 1

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

Backlight-Panel für anspruchsvolle Einsatzbereiche

Schutzart IP54: staubgeschützt und spritzwassergeschützt – zuverlässig in sensiblen Umgebungen
Für IFS-zertifizierte Lebensmittel- & Pharmaindustrie

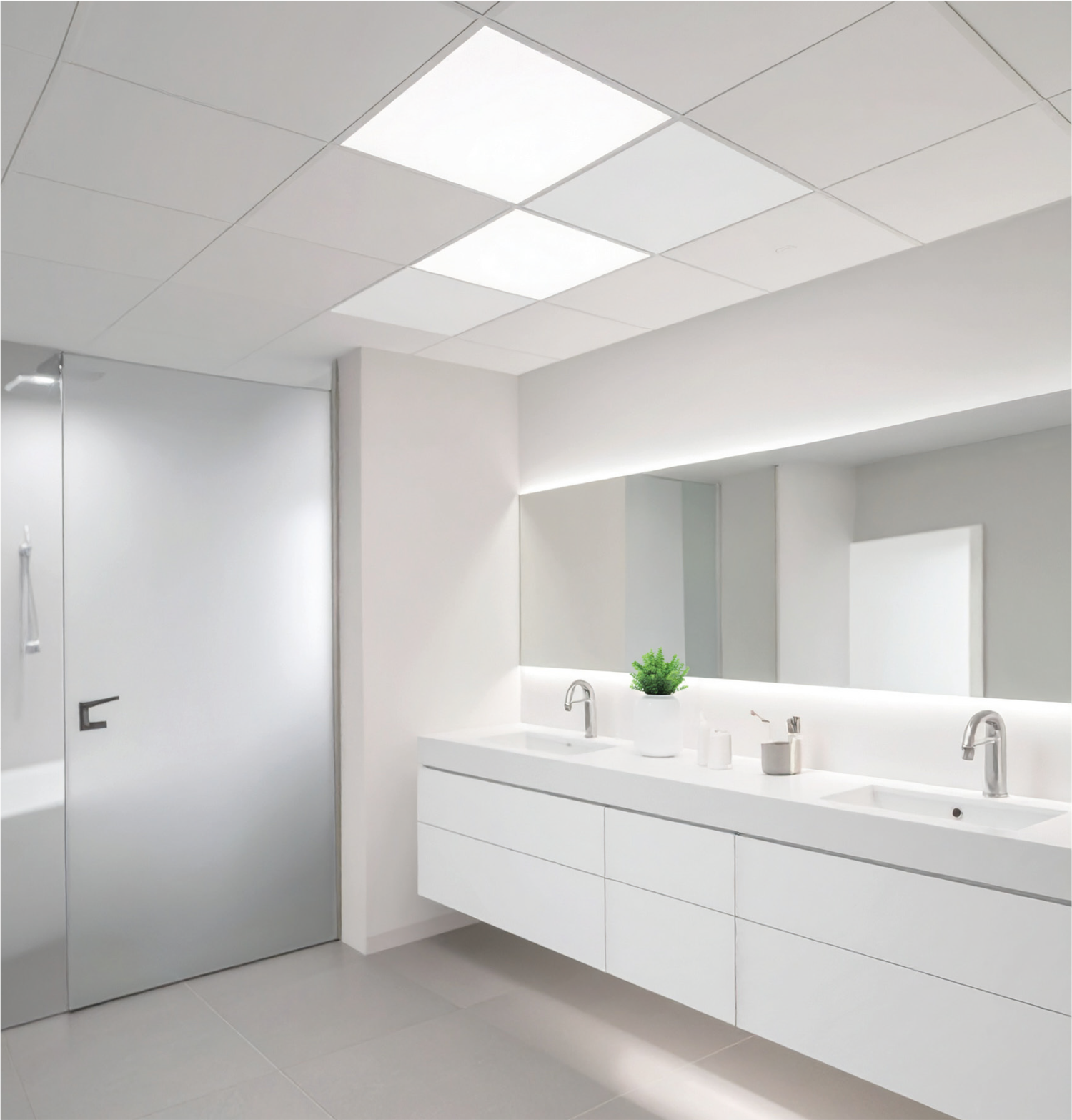

Einbau- und Anbaumontage möglich: flexible Integration in abgehängte Decken oder direkte Deckenmontage
Erhältlich mit opaler oder mikroprismatischer Abdeckung

Special features

Surface-mounted luminaire

Connected loads 220-240 V, 50-60 Hz

Color-Rendering-Index CRI-80

Recessed

IP-54

Lifespan 50000-L80

LED

Risk group RG-0

Color Consistency SDCM-3

Technical specifications

General

ETIM-class:

Ceiling-/wall luminaire

Lamp type:

LED not exchangeable

Housing material:

Steel

Surface protection housing:

Powder coating

Housing colour:

White

Material cover:

Plastic, structured

Type of grid:

None

Voltage type:

Type of control gear:

LED operating device current-controlled

Light distributor:

Diffuser lens/optic/panel

Light distribution:

Symmetric

Beam angle:

41-80° - Wide beam

Colour consistency (McAdam ellipse):

SDCM3

Light outlet:

Direct

Degree of protection (IP), rear side:

IP20

Impact strength:

IK03

Protection class according to IEC 61140:

Emergency function monitoring system:

None

Filament test according to IEC 60695-2-11:

650 °C - 30 s

Colour rendering index CRI:

80-89

Type of wiring:

Suitable for loop-through wiring

Connection type:

Push-in clamp

Photobiological safety according to EN 62471:

RG0

Colour of light adjustable:

Luminous flux adjustable:

Beam angle adjustable:

Degree of protection (IP), front side:

IP54

Colour temperature:

4000 K

Rated lifetime L70/B50 at 25 °C:

50000 h

Max. system power:

23 W

Width:

622 mm

Length:

622 mm

Rated luminous flux according to IEC 62722-2- 1:

3200 lm

Height/depth:

90 mm

Downloads

Montageanleitung_LED_Feuchtraum_Einlegeleuchte___MIB__de_en__2025_10.pdf

All versions

Type	Material cover	Max. system power	Width	Length	Rated luminous flux according to IEC 62722-2- 1	Product nr.
Type LED Backl.Panel MIB.4.23.MPRM 23W/3200lm/4000K/CRI>80 622x622x90 mm/M625/IP54	Material cover Plastic, structured	Max. system power 23 W	Width 622 mm	Length 622 mm	Rated luminous flux according to IEC 62722-2- 1 3200 lm	Product nr. LPL200079-3
LED Backl.Panel MIB.4.23.MPRM 23W/3200lm/4000K/CRI>80 622x622x90 mm/M625/IP54 Width: 622 mm, Length: 622 mm, Material cover: Plastic, structured, Max. system power: 23 W, Rated luminous flux according to IEC 62722-2- 1: 3200 lm Product-Nr.: LPL200079-3 Width: 622 mm Length: 622 mm Material cover: Plastic, structured Max. system power: 23 W Rated luminous flux according to IEC 62722-2- 1: 3200 lm Price only for registered users Log in To product

Type LED Backl.Panel MIB.4.32.MPRM 32W/4400lm/4000K/CRI>80 622x622x90 mm/M625/IP54	Material cover Plastic, structured	Max. system power 32 W	Width 622 mm	Length 622 mm	Rated luminous flux according to IEC 62722-2- 1 4400 lm	Product nr. LPL200050-3
LED Backl.Panel MIB.4.32.MPRM 32W/4400lm/4000K/CRI>80 622x622x90 mm/M625/IP54 Width: 622 mm, Length: 622 mm, Material cover: Plastic, structured, Max. system power: 32 W, Rated luminous flux according to IEC 62722-2- 1: 4400 lm Product-Nr.: LPL200050-3 Width: 622 mm Length: 622 mm Material cover: Plastic, structured Max. system power: 32 W Rated luminous flux according to IEC 62722-2- 1: 4400 lm Price only for registered users Log in To product

Type LED Backl.Panel MIB.4.55.MPRM 55W/7300lm/4000K/CRI>80 622x622x90 mm/M625/IP54	Material cover Plastic, structured	Max. system power 55 W	Width 622 mm	Length 622 mm	Rated luminous flux according to IEC 62722-2- 1 7300 lm	Product nr. LPL200081-3
LED Backl.Panel MIB.4.55.MPRM 55W/7300lm/4000K/CRI>80 622x622x90 mm/M625/IP54 Width: 622 mm, Length: 622 mm, Material cover: Plastic, structured, Max. system power: 55 W, Rated luminous flux according to IEC 62722-2- 1: 7300 lm Product-Nr.: LPL200081-3 Width: 622 mm Length: 622 mm Material cover: Plastic, structured Max. system power: 55 W Rated luminous flux according to IEC 62722-2- 1: 7300 lm Price only for registered users Log in To product

Type LED Backl.Panel MIB.4.32.OP 32W/4100lm/400K/CRI>80 622x622x90mm/M625/IP54	Material cover Plastic, opal	Max. system power 32 W	Width 622 mm	Length 622 mm	Rated luminous flux according to IEC 62722-2- 1 4100 lm	Product nr. LPL200036-3
LED Backl.Panel MIB.4.32.OP 32W/4100lm/400K/CRI>80 622x622x90mm/M625/IP54 Width: 622 mm, Length: 622 mm, Material cover: Plastic, opal, Max. system power: 32 W, Rated luminous flux according to IEC 62722-2- 1: 4100 lm Product-Nr.: LPL200036-3 Width: 622 mm Length: 622 mm Material cover: Plastic, opal Max. system power: 32 W Rated luminous flux according to IEC 62722-2- 1: 4100 lm Price only for registered users Log in To product

Type LED Backl.Panel MIB.4.44.MPRM 44W/5700lm/4000K/CRI>80 622x622x90 mm/M625/IP54	Material cover Plastic, structured	Max. system power 44 W	Width 622 mm	Length 622 mm	Rated luminous flux according to IEC 62722-2- 1 5700 lm	Product nr. LPL200080-3
LED Backl.Panel MIB.4.44.MPRM 44W/5700lm/4000K/CRI>80 622x622x90 mm/M625/IP54 Width: 622 mm, Length: 622 mm, Material cover: Plastic, structured, Max. system power: 44 W, Rated luminous flux according to IEC 62722-2- 1: 5700 lm Product-Nr.: LPL200080-3 Width: 622 mm Length: 622 mm Material cover: Plastic, structured Max. system power: 44 W Rated luminous flux according to IEC 62722-2- 1: 5700 lm Price only for registered users Log in To product

Type LED Backl.Panel MIB.4.23.OP 23W/3100lm/4000K/CRI>80 622x622x90mm/M625/IP54	Material cover Plastic, opal	Max. system power 23 W	Width 622 mm	Length 622 mm	Rated luminous flux according to IEC 62722-2- 1 3100 lm	Product nr. LPL200077-3
LED Backl.Panel MIB.4.23.OP 23W/3100lm/4000K/CRI>80 622x622x90mm/M625/IP54 Width: 622 mm, Length: 622 mm, Material cover: Plastic, opal, Max. system power: 23 W, Rated luminous flux according to IEC 62722-2- 1: 3100 lm Product-Nr.: LPL200077-3 Width: 622 mm Length: 622 mm Material cover: Plastic, opal Max. system power: 23 W Rated luminous flux according to IEC 62722-2- 1: 3100 lm Price only for registered users Log in To product

Type LED Backl.Panel MIB.4.44.OP 44W/5300lm/4000K/CRI>80 622x622x90mm/M625/IP54	Material cover Plastic, opal	Max. system power 44 W	Width 622 mm	Length 622 mm	Rated luminous flux according to IEC 62722-2- 1 5300 lm	Product nr. LPL200078-3
LED Backl.Panel MIB.4.44.OP 44W/5300lm/4000K/CRI>80 622x622x90mm/M625/IP54 Width: 622 mm, Length: 622 mm, Material cover: Plastic, opal, Max. system power: 44 W, Rated luminous flux according to IEC 62722-2- 1: 5300 lm Product-Nr.: LPL200078-3 Width: 622 mm Length: 622 mm Material cover: Plastic, opal Max. system power: 44 W Rated luminous flux according to IEC 62722-2- 1: 5300 lm Price only for registered users Log in To product

Type LED Backl.Panel MIB.4.55.OP 55W/6500lm/4000K/CRI>80 622x622x90mm/M625/IP54	Material cover Plastic, opal	Max. system power 55 W	Width 622 mm	Length 622 mm	Rated luminous flux according to IEC 62722-2- 1 6500 lm	Product nr. LPL200047-3
LED Backl.Panel MIB.4.55.OP 55W/6500lm/4000K/CRI>80 622x622x90mm/M625/IP54 Width: 622 mm, Length: 622 mm, Material cover: Plastic, opal, Max. system power: 55 W, Rated luminous flux according to IEC 62722-2- 1: 6500 lm Product-Nr.: LPL200047-3 Width: 622 mm Length: 622 mm Material cover: Plastic, opal Max. system power: 55 W Rated luminous flux according to IEC 62722-2- 1: 6500 lm Price only for registered users Log in To product
