LED Einbau-Downlight, 15 Watt EDS-135.15.3, 3000K, 1450lm CRI 80, IP65, 135x95mm

EDS IP65

Outer diameter: 135 mm, Colour temperature: 3000 K, Max. system power: 15 W, Built-in diameter: 125 mm, Rated luminous flux according to IEC 62722-2- 1: 1450 lm

Product nr.: LDL100056

See all versions

Outer diameter

Colour temperature

Max. system power

Built-in diameter

Rated luminous flux according to IEC 62722-2- 1

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

> IP65 - staubdicht und strahlwassergeschützt
– ideal für Feuchträume, Sanitärbereiche und überdachte Außenzonen
> Einfache Montage mittels Schnellspannfedern und Cinch-System
> Verfügbar in 3.000 K / 4.000 K: für stimmige Lichtlösungen in technischen und öffentlichen Bereichen
> Optional dimmbar / DALI-kompatibel: flexible Steuerung für energiesparende Lichtkonzepte

Special features

Connected loads 220-240 V, 50-60 Hz

Color-Rendering-Index CRI-80

Recessed

Energy Efficiency E

IP-20

IP-65 room-side

LED

Protection class II

Color Consistency SDCM-5

Technical specifications

General

ETIM-class:

Downlight/spot/floodlight

Adjustability:

Not adjustable

Housing material:

Aluminium

Surface protection:

Powder coating

Housing colour:

White

Material cover:

Plastic, opal

Voltage type:

Reflector:

Matt

Light distributor:

Reflector

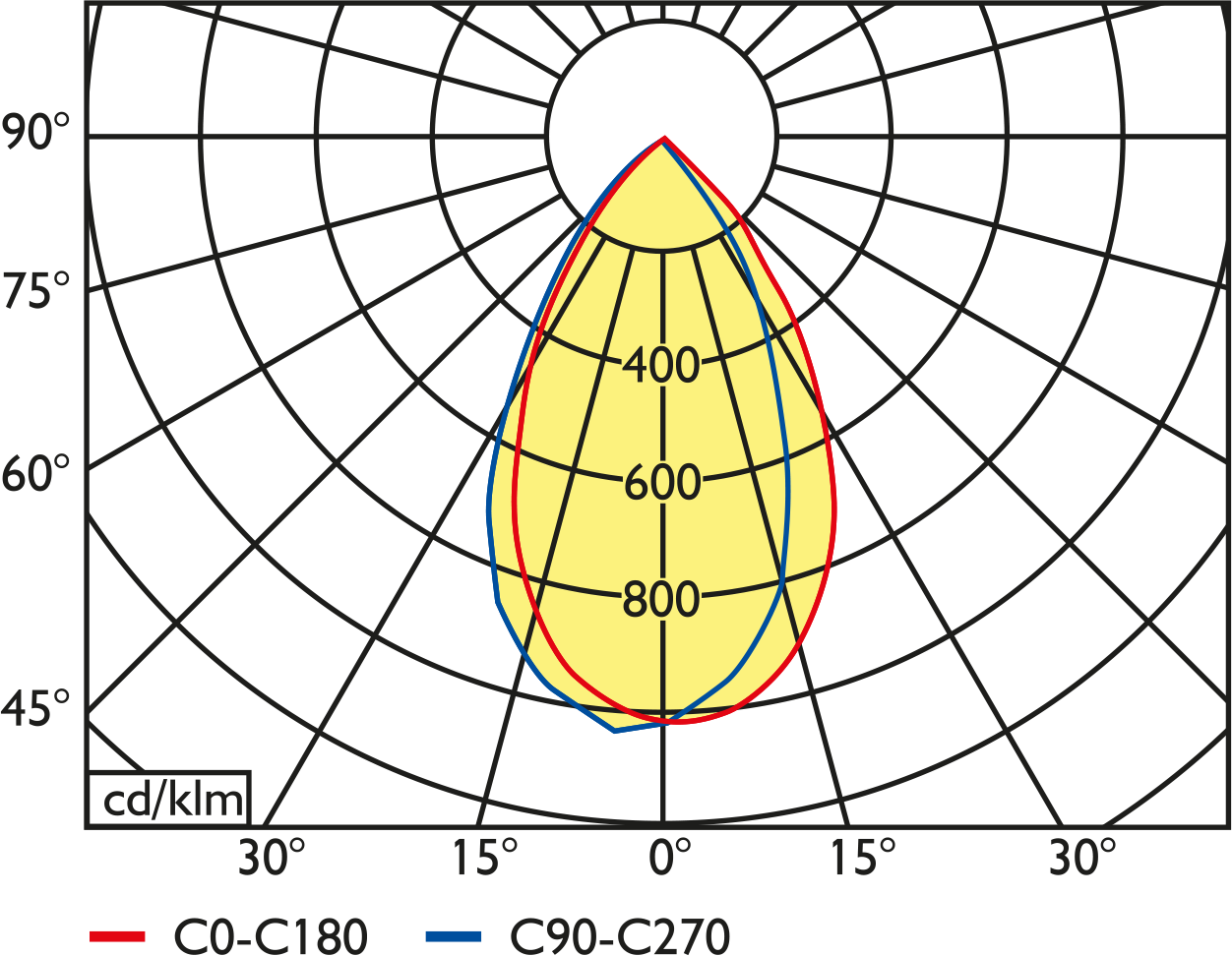

Light distribution:

Symmetric

Beam angle:

41-80° - Wide beam

Light outlet:

Direct

Energy efficiency class of the light source according to EU regulation 2019/2015:

Degree of protection (IP), rear side:

IP20

Degree of protection (IP), front side:

IP65

Impact strength:

IK03

Protection class according to IEC 61140:

Colour of light adjustable:

Colour rendering index CRI:

80-89

Luminous flux adjustable:

Beam angle adjustable:

Type of wiring:

Ending

Connection type:

Free conductor end

Photobiological safety according to EN 62471:

RG0

Colour consistency (McAdam ellipse):

SDCM5

Energy efficiency class:

Rated lifetime L70/B50 at 25 °C:

50000 h

Colour temperature:

3000 K

Max. system power:

15 W

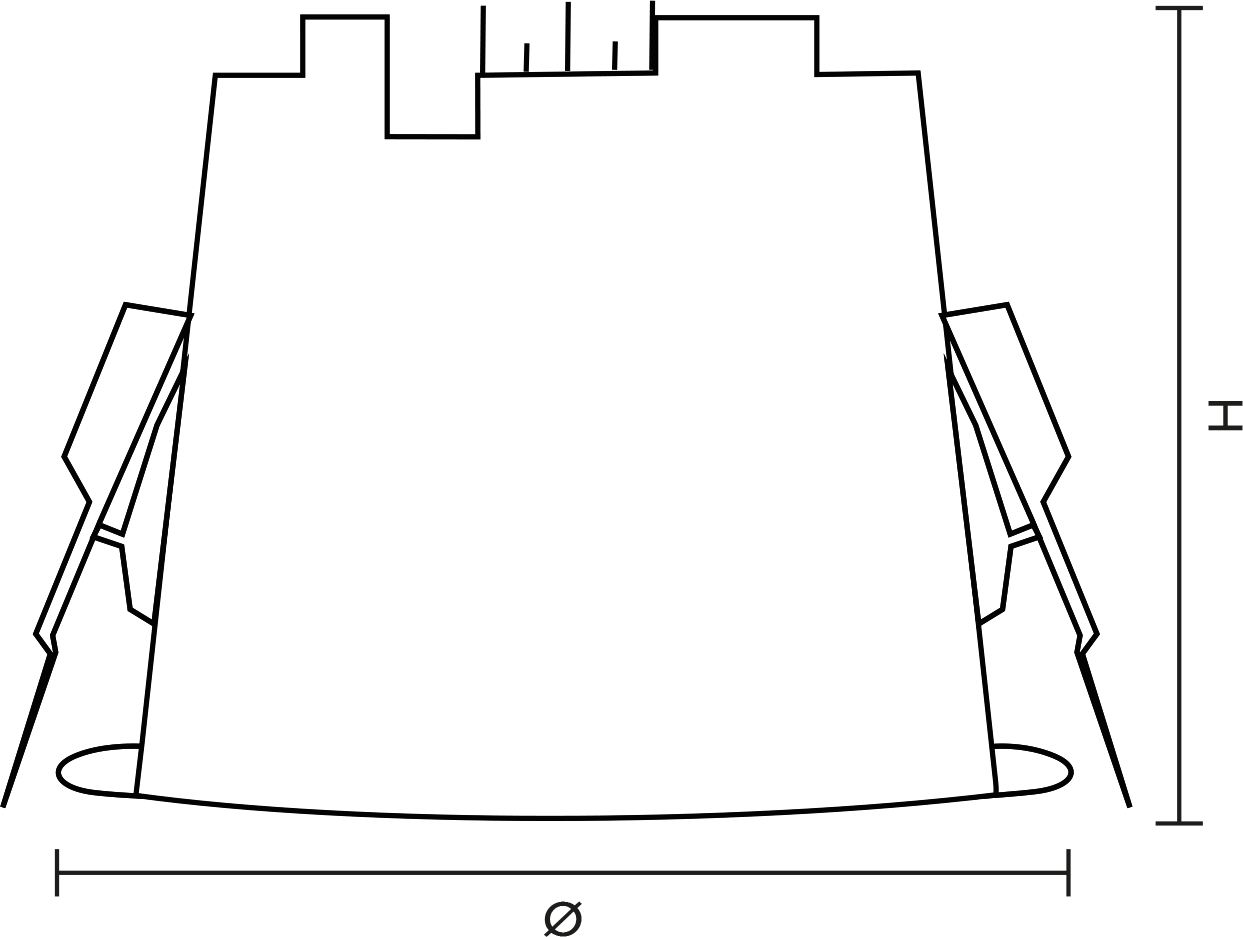

Outer diameter:

135 mm

Height/depth:

95 mm

Built-in diameter:

125 mm

Rated luminous flux according to IEC 62722-2- 1:

1450 lm

All versions

Type	Colour temperature	Max. system power	Outer diameter	Built-in diameter	Rated luminous flux according to IEC 62722-2- 1	Product nr.
Type LED Einbau-Downlight, 15 Watt EDS-135.15.3, 3000K, 1450lm CRI 80, IP65, 135x95mm	Colour temperature 3000 K	Max. system power 15 W	Outer diameter 135 mm	Built-in diameter 125 mm	Rated luminous flux according to IEC 62722-2- 1 1450 lm	Product nr. LDL100056
LED Einbau-Downlight, 15 Watt EDS-135.15.3, 3000K, 1450lm CRI 80, IP65, 135x95mm Outer diameter: 135 mm, Colour temperature: 3000 K, Max. system power: 15 W, Built-in diameter: 125 mm, Rated luminous flux according to IEC 62722-2- 1: 1450 lm Product-Nr.: LDL100056 Outer diameter: 135 mm Colour temperature: 3000 K Max. system power: 15 W Built-in diameter: 125 mm Rated luminous flux according to IEC 62722-2- 1: 1450 lm Price only for registered users Log in Product data sheet To product

Type LED Einbau-Downlight, 25 Watt EDS-160.25.4, 4000K, 2500lm CRI 80, IP65, 160x109mm	Colour temperature 4000 K	Max. system power 25 W	Outer diameter 160 mm	Built-in diameter 150 mm	Rated luminous flux according to IEC 62722-2- 1 2500 lm	Product nr. LDL200057
LED Einbau-Downlight, 25 Watt EDS-160.25.4, 4000K, 2500lm CRI 80, IP65, 160x109mm Outer diameter: 160 mm, Colour temperature: 4000 K, Max. system power: 25 W, Built-in diameter: 150 mm, Rated luminous flux according to IEC 62722-2- 1: 2500 lm Product-Nr.: LDL200057 Outer diameter: 160 mm Colour temperature: 4000 K Max. system power: 25 W Built-in diameter: 150 mm Rated luminous flux according to IEC 62722-2- 1: 2500 lm Price only for registered users Log in Product data sheet To product

Type LED Einbau-Downlight, 10 Watt EDS-110.10.4, 4000K, 1000lm CRI 80, IP65, 110x75mm	Colour temperature 4000 K	Max. system power 10 W	Outer diameter 110 mm	Built-in diameter 95 mm	Rated luminous flux according to IEC 62722-2- 1 1000 lm	Product nr. LDL200055
LED Einbau-Downlight, 10 Watt EDS-110.10.4, 4000K, 1000lm CRI 80, IP65, 110x75mm Outer diameter: 110 mm, Colour temperature: 4000 K, Max. system power: 10 W, Built-in diameter: 95 mm, Rated luminous flux according to IEC 62722-2- 1: 1000 lm Product-Nr.: LDL200055 Outer diameter: 110 mm Colour temperature: 4000 K Max. system power: 10 W Built-in diameter: 95 mm Rated luminous flux according to IEC 62722-2- 1: 1000 lm Price only for registered users Log in Product data sheet To product

Type LED Einbau-Downlight, 25 Watt EDS-160.25.3, 3000K, 2420lm CRI 80, IP65, 160x109mm	Colour temperature 3000 K	Max. system power 25 W	Outer diameter 160 mm	Built-in diameter 150 mm	Rated luminous flux according to IEC 62722-2- 1 2420 lm	Product nr. LDL100057
LED Einbau-Downlight, 25 Watt EDS-160.25.3, 3000K, 2420lm CRI 80, IP65, 160x109mm Outer diameter: 160 mm, Colour temperature: 3000 K, Max. system power: 25 W, Built-in diameter: 150 mm, Rated luminous flux according to IEC 62722-2- 1: 2420 lm Product-Nr.: LDL100057 Outer diameter: 160 mm Colour temperature: 3000 K Max. system power: 25 W Built-in diameter: 150 mm Rated luminous flux according to IEC 62722-2- 1: 2420 lm Price only for registered users Log in Product data sheet To product

Type LED Einbau-Downlight, 10 Watt EDS-110.10.3, 3000K, 970lm CRI 80, IP65, 110x75mm	Colour temperature 3000 K	Max. system power 10 W	Outer diameter 110 mm	Built-in diameter 95 mm	Rated luminous flux according to IEC 62722-2- 1 970 lm	Product nr. LDL100055
LED Einbau-Downlight, 10 Watt EDS-110.10.3, 3000K, 970lm CRI 80, IP65, 110x75mm Outer diameter: 110 mm, Colour temperature: 3000 K, Max. system power: 10 W, Built-in diameter: 95 mm, Rated luminous flux according to IEC 62722-2- 1: 970 lm Product-Nr.: LDL100055 Outer diameter: 110 mm Colour temperature: 3000 K Max. system power: 10 W Built-in diameter: 95 mm Rated luminous flux according to IEC 62722-2- 1: 970 lm Price only for registered users Log in Product data sheet To product

Type LED Einbau-Downlight, 15 Watt EDS-135.15.4, 4000K, 1500lm CRI 80, IP65, 135x95mm	Colour temperature 4000 K	Max. system power 15 W	Outer diameter 135 mm	Built-in diameter 125 mm	Rated luminous flux according to IEC 62722-2- 1 1500 lm	Product nr. LDL200056
LED Einbau-Downlight, 15 Watt EDS-135.15.4, 4000K, 1500lm CRI 80, IP65, 135x95mm Outer diameter: 135 mm, Colour temperature: 4000 K, Max. system power: 15 W, Built-in diameter: 125 mm, Rated luminous flux according to IEC 62722-2- 1: 1500 lm Product-Nr.: LDL200056 Outer diameter: 135 mm Colour temperature: 4000 K Max. system power: 15 W Built-in diameter: 125 mm Rated luminous flux according to IEC 62722-2- 1: 1500 lm Price only for registered users Log in Product data sheet To product
