Feuchtraum Profil- und Rohrleuchten - Serie 31
LED FR-Profilleuchte 31120.4 IP 66, 42W, 5300lm, 4000K PC opal,1200x74x63mm, inkl.DV
Product nr.: 205100-1
See all versionsPrice for registered users only
As a registered user, you have access to all prices for our items and can order directly.
Log in
Product description
> Effiziente Lichtlösung für anspruchsvolle Anwendungen, IP66
> Staubdicht und strahlwassergeschützt
> Homogene Ausleuchtung

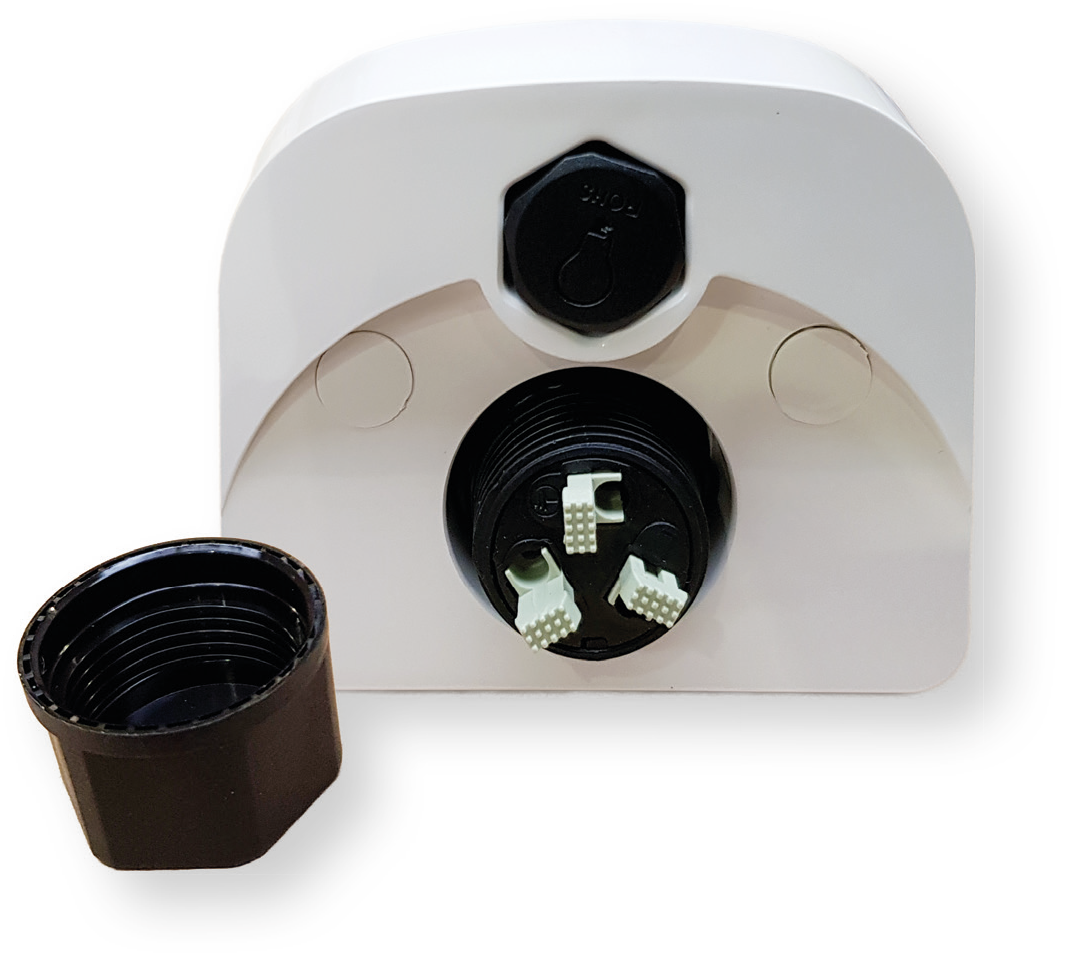

> Einfache Einspeisung mittels stirnseitiger Steckklemme
> Anbau- und Pendelmontage, auch für lange Lichtlinien geeignet
> Durchgangsverdrahtung 3 × 1,5 mm²
Special features
Surface-mounted luminaire
Connected loads 220-240 V, 50-60 Hz
CE
Color-Rendering-Index CRI-80
IP-66
Lifespan 50000-L80
LED
Luminaire with limited surface temp
Pendant
Risk group RG-0
Impact Protection IK10
Color Consistency SDCM-5
Technical specifications
General
All versions
| Type | Colour temperature | Width | Length | Max. system power | Rated luminous flux according to IEC 62722-2- 1 | Product nr. | ||
|---|---|---|---|---|---|---|---|---|
| Type LED FR-Profilleuchte 31120.4 IP 66, 42W, 5300lm, 4000K PC opal,1200x74x63mm, inkl.DV | Colour temperature 4000 K | Width 74 mm | Length 1200 mm | Max. system power 42 W | Rated luminous flux according to IEC 62722-2- 1 5300 lm | Product nr. 205100-1 | keyboard_arrow_down | |
LED FR-Profilleuchte 31120.4 IP 66, 42W, 5300lm, 4000K PC opal,1200x74x63mm, inkl.DVWidth: 74 mm, Length: 1200 mm, Colour temperature: 4000 K, Max. system power: 42 W, Rated luminous flux according to IEC 62722-2- 1: 5300 lm Product-Nr.: 205100-1 Width: 74 mm Length: 1200 mm Colour temperature: 4000 K Max. system power: 42 W Rated luminous flux according to IEC 62722-2- 1: 5300 lm Price only for registered users Log in |
||||||||
| Type LED FR-Profilleuchte 31120.4 IP 66, 42W, 6400lm, 4000K PC opal,1200x74x63mm, inkl.DV | Colour temperature 4000 K | Width 74 mm | Length 1200 mm | Max. system power 42 W | Rated luminous flux according to IEC 62722-2- 1 6790 lm | Product nr. 205100-2 | keyboard_arrow_down | |
LED FR-Profilleuchte 31120.4 IP 66, 42W, 6400lm, 4000K PC opal,1200x74x63mm, inkl.DVWidth: 74 mm, Length: 1200 mm, Colour temperature: 4000 K, Max. system power: 42 W, Rated luminous flux according to IEC 62722-2- 1: 6790 lm Product-Nr.: 205100-2 Width: 74 mm Length: 1200 mm Colour temperature: 4000 K Max. system power: 42 W Rated luminous flux according to IEC 62722-2- 1: 6790 lm Price only for registered users Log in
|
||||||||
| Type LED FR-Profilleuchte 31151.6 IP 66, 80W, 11.200lm, 6500K PC opal,1500x110x75mm, inkl. DV | Colour temperature 6500 K | Width 110 mm | Length 1500 mm | Max. system power 80 W | Rated luminous flux according to IEC 62722-2- 1 11200 lm | Product nr. 205103 | keyboard_arrow_down | |
LED FR-Profilleuchte 31151.6 IP 66, 80W, 11.200lm, 6500K PC opal,1500x110x75mm, inkl. DVWidth: 110 mm, Length: 1500 mm, Colour temperature: 6500 K, Max. system power: 80 W, Rated luminous flux according to IEC 62722-2- 1: 11200 lm Product-Nr.: 205103 Width: 110 mm Length: 1500 mm Colour temperature: 6500 K Max. system power: 80 W Rated luminous flux according to IEC 62722-2- 1: 11200 lm Price only for registered users Log in |
||||||||
| Type LED FR-Profilleuchte 31150.4 IP 66, 58W, 7400lm, 4000K PC opal,1500x74x63mm, inkl. DV | Colour temperature 4000 K | Width 74 mm | Length 1500 mm | Max. system power 58 W | Rated luminous flux according to IEC 62722-2- 1 7400 lm | Product nr. 205101-1 | keyboard_arrow_down | |
LED FR-Profilleuchte 31150.4 IP 66, 58W, 7400lm, 4000K PC opal,1500x74x63mm, inkl. DVWidth: 74 mm, Length: 1500 mm, Colour temperature: 4000 K, Max. system power: 58 W, Rated luminous flux according to IEC 62722-2- 1: 7400 lm Product-Nr.: 205101-1 Width: 74 mm Length: 1500 mm Colour temperature: 4000 K Max. system power: 58 W Rated luminous flux according to IEC 62722-2- 1: 7400 lm Price only for registered users Log in |
||||||||
| Type LED FR-Profilleuchte 31151.4 IP 66, 80W, 11.200lm, 4000K PC opal,1500x110x75mm, inkl. DV | Colour temperature 4000 K | Width 110 mm | Length 1500 mm | Max. system power 80 W | Rated luminous flux according to IEC 62722-2- 1 11200 lm | Product nr. 205102 | keyboard_arrow_down | |
LED FR-Profilleuchte 31151.4 IP 66, 80W, 11.200lm, 4000K PC opal,1500x110x75mm, inkl. DVWidth: 110 mm, Length: 1500 mm, Colour temperature: 4000 K, Max. system power: 80 W, Rated luminous flux according to IEC 62722-2- 1: 11200 lm Product-Nr.: 205102 Width: 110 mm Length: 1500 mm Colour temperature: 4000 K Max. system power: 80 W Rated luminous flux according to IEC 62722-2- 1: 11200 lm Price only for registered users Log in |
||||||||
| Type LED FR-Profilleuchte 31150.4 IP 66, 59W, 8750lm, 4000K PC opal,1500x74x63mm, inkl. DV | Colour temperature 4000 K | Width 74 mm | Length 1500 mm | Max. system power 59 W | Rated luminous flux according to IEC 62722-2- 1 8990 lm | Product nr. 205101-2 | keyboard_arrow_down | |
LED FR-Profilleuchte 31150.4 IP 66, 59W, 8750lm, 4000K PC opal,1500x74x63mm, inkl. DVWidth: 74 mm, Length: 1500 mm, Colour temperature: 4000 K, Max. system power: 59 W, Rated luminous flux according to IEC 62722-2- 1: 8990 lm Product-Nr.: 205101-2 Width: 74 mm Length: 1500 mm Colour temperature: 4000 K Max. system power: 59 W Rated luminous flux according to IEC 62722-2- 1: 8990 lm Price only for registered users Log in
|
||||||||
