LED High Bay 200W, 5700K HB200.5.120-LED/27.000lm/RA>80 IP65/Abdeckung PC 120° /dim. 1-10V

Datenblatt_LED_Hallen_Pendelleuchte_mit_Linsenoptik___HB___de_en_2022_03.pdf Montageanleitung_Montageb__gel_LED_Hallen_Pendelleuchte__de_en__2023_01.pdf

Hallen-Pendelleuchten - HB

Diameter: 380 mm, Colour temperature: 5700 K, Max. system power: 200 W, Rated luminous flux according to IEC 62722-2- 1: 27000 lm, Beam angle: 120 °

Product nr.: LHB300032-1

See all versions

Diameter

Max. system power

Rated luminous flux according to IEC 62722-2- 1

Beam angle

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

Leistungsstarke Beleuchtung für Industrie- und Lagerhallen

Intensive, gleichmäßige Ausleuchtung großer Flächen bei hohem Wirkungsgrad
Staub- und feuchtigkeitsresistent – ideal für anspruchsvolle Industrieumgebungen
Einfaches Pendel- oder Direktanbausystem – passt sich jeder Hallenhöhe an
Erhältlich in verschiedenen Wattagen und Lichtfarben: perfekt abgestimmt auf unterschiedliche Raumhöhen und Anforderungen

Special features

Connected loads 220-240 V, 50-60 Hz

Color-Rendering-Index CRI-80

IP-65

Lifespan 50000-L80

LED

Luminaire with limited surface temp

Pendant

Risk group RG-1

Technical specifications

General

ETIM-class:

Pendant luminaire

Lamp type:

LED exchangeable

Lamp holder:

None

Housing material:

Aluminium

Housing colour:

Black

Material cover:

Plastic, transparent

Type of grid:

None

Voltage type:

Type of control gear:

LED operating device current-controlled

Light distributor:

Diffuser lens/optic/panel

Reflector:

None

Light distribution:

Symmetric

Colour consistency (McAdam ellipse):

SDCM5

Light outlet:

Direct

Energy efficiency class of the light source according to EU regulation 2019/2015:

Degree of protection (IP):

IP65

Impact strength:

IK10

Protection class according to IEC 61140:

Emergency function monitoring system:

None

Filament test according to IEC 60695-2-11:

650 °C - 30 s

Colour rendering index CRI:

80-89

Colour of light adjustable:

Luminous flux adjustable:

Beam angle adjustable:

Type of wiring:

Ending

Connection type:

Other

Rated lifetime L70/B50 at 25 °C:

50000 h

Conductor cross section:

1 mm²

Colour temperature:

5700 K

Diameter:

380 mm

Height/depth:

200 mm

Max. system power:

200 W

Rated luminous flux according to IEC 62722-2- 1:

27000 lm

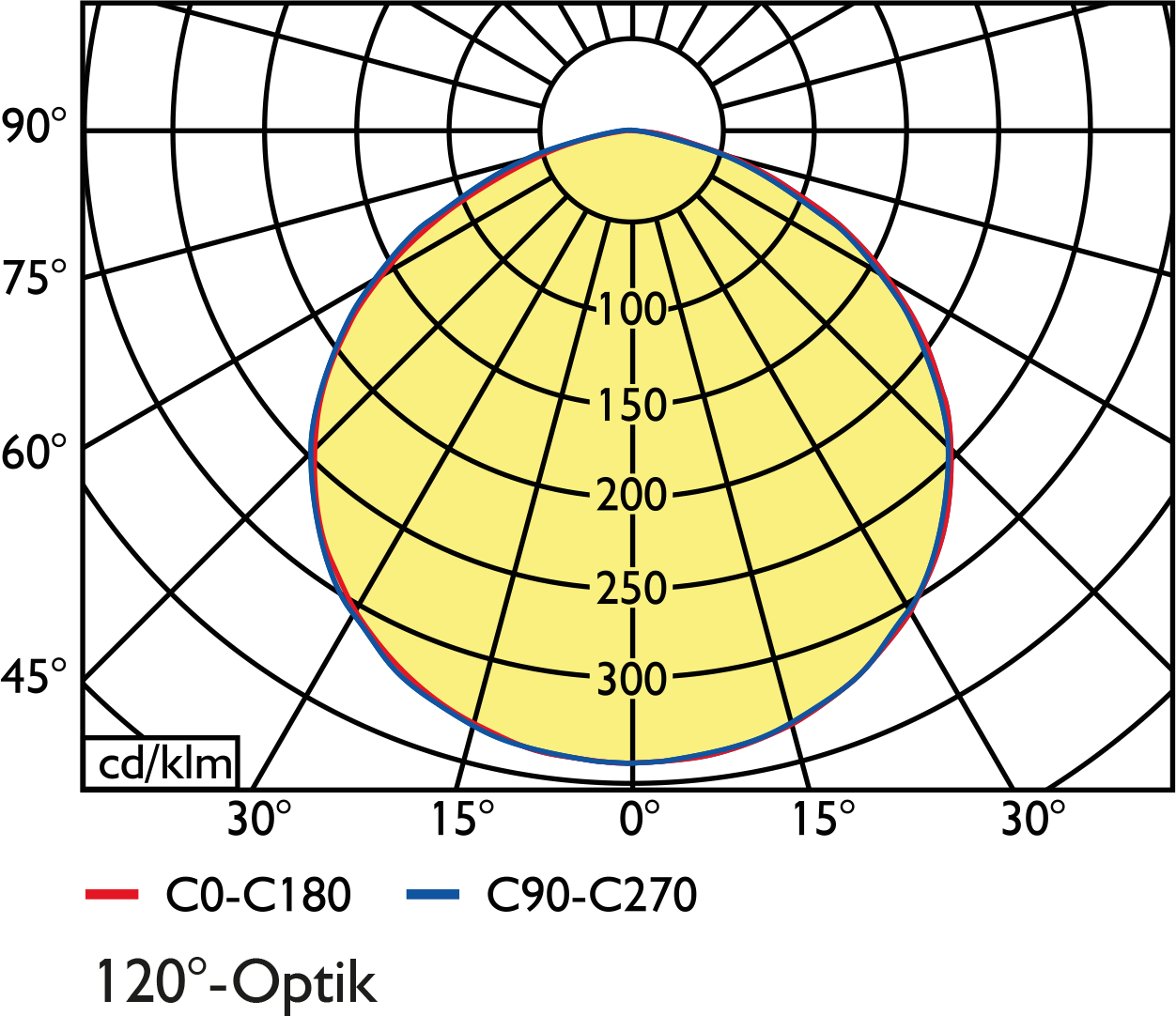

Beam angle:

120 °

Downloads

Datenblatt_LED_Hallen_Pendelleuchte_mit_Linsenoptik___HB___de_en_2022_03.pdf Montageanleitung_Montageb__gel_LED_Hallen_Pendelleuchte__de_en__2023_01.pdf

All versions

Type	Colour temperature	Diameter	Max. system power	Rated luminous flux according to IEC 62722-2- 1	Beam angle	Product nr.
Type LED High Bay 150W, 5700K HB150.5-LED/20.250lm/RA>80 IP65/Linse 90°/dim. 1-10V	Colour temperature 5700 K	Diameter 330 mm	Max. system power 150 W	Rated luminous flux according to IEC 62722-2- 1 20250 lm	Beam angle 90 °	Product nr. LHB300026-2
LED High Bay 150W, 5700K HB150.5-LED/20.250lm/RA>80 IP65/Linse 90°/dim. 1-10V Diameter: 330 mm, Colour temperature: 5700 K, Max. system power: 150 W, Rated luminous flux according to IEC 62722-2- 1: 20250 lm, Beam angle: 90 ° Product-Nr.: LHB300026-2 Diameter: 330 mm Colour temperature: 5700 K Max. system power: 150 W Rated luminous flux according to IEC 62722-2- 1: 20250 lm Beam angle: 90 ° Price only for registered users Log in To product

Type LED HighBay 200W, 5700K HB200.5-LED/27.000 lm/RA>80 IP65/Linse 90°/dim. 1-10V	Colour temperature 5700 K	Diameter 380 mm	Max. system power 200 W	Rated luminous flux according to IEC 62722-2- 1 27000 lm	Beam angle 90 °	Product nr. LHB300028-1
LED HighBay 200W, 5700K HB200.5-LED/27.000 lm/RA>80 IP65/Linse 90°/dim. 1-10V Diameter: 380 mm, Colour temperature: 5700 K, Max. system power: 200 W, Rated luminous flux according to IEC 62722-2- 1: 27000 lm, Beam angle: 90 ° Product-Nr.: LHB300028-1 Diameter: 380 mm Colour temperature: 5700 K Max. system power: 200 W Rated luminous flux according to IEC 62722-2- 1: 27000 lm Beam angle: 90 ° Price only for registered users Log in To product

Type LED High Bay 200W, 5700K HB200.5.120-LED/27.000lm/RA>80 IP65/Abdeckung PC 120° /dim. 1-10V	Colour temperature 5700 K	Diameter 380 mm	Max. system power 200 W	Rated luminous flux according to IEC 62722-2- 1 27000 lm	Beam angle 120 °	Product nr. LHB300032-1
LED High Bay 200W, 5700K HB200.5.120-LED/27.000lm/RA>80 IP65/Abdeckung PC 120° /dim. 1-10V Diameter: 380 mm, Colour temperature: 5700 K, Max. system power: 200 W, Rated luminous flux according to IEC 62722-2- 1: 27000 lm, Beam angle: 120 ° Product-Nr.: LHB300032-1 Diameter: 380 mm Colour temperature: 5700 K Max. system power: 200 W Rated luminous flux according to IEC 62722-2- 1: 27000 lm Beam angle: 120 ° Price only for registered users Log in To product

Type LED High Bay 150W, 5700K HB150.5.120-LED/20.250lm/RA>80 IP65/Abdeckung PC 120° /dim. 1-10V	Colour temperature 5700 K	Diameter 330 mm	Max. system power 150 W	Rated luminous flux according to IEC 62722-2- 1 20250 lm	Beam angle 120 °	Product nr. LHB300031-1
LED High Bay 150W, 5700K HB150.5.120-LED/20.250lm/RA>80 IP65/Abdeckung PC 120° /dim. 1-10V Diameter: 330 mm, Colour temperature: 5700 K, Max. system power: 150 W, Rated luminous flux according to IEC 62722-2- 1: 20250 lm, Beam angle: 120 ° Product-Nr.: LHB300031-1 Diameter: 330 mm Colour temperature: 5700 K Max. system power: 150 W Rated luminous flux according to IEC 62722-2- 1: 20250 lm Beam angle: 120 ° Price only for registered users Log in To product
