LED High Bay HB200.5.90-LED, einstellb. 100/150/200W & 4000/5000/6000K IP65/ 90° /RA>80

Datenblatt_LED_Hallen_Pendelleuchte_mit_Linsenoptik___HBE_einstellbar___de_en_2025_09.pdf Montageanleitung_LED_Hallen_Pendelleuchte___HBE_einstellbar__de_en__2025_08.pdf

Hallen-Pendelleuchten - HBE

Diameter: 320 mm, Colour temperature: 4000 K, Max. system power: 200 W, Rated luminous flux according to IEC 62722-2- 1: 34300 lm, Beam angle: 90 °

Product nr.: LHB300042

See all versions

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

Flexibel anpassbar – hohe Lichtausbeute

Intensive, gleichmäßige Ausleuchtung großer Flächen bei hohem Wirkungsgrad
Staub- und feuchtigkeitsresistent – ideal für anspruchsvolle Industrieumgebungen
Einfaches Pendel- oder Direktanbausystem – passt sich jeder Hallenhöhe an
3-in-1-Leistungs- und Farbeinstellung – nur ein Leuchtentyp für verschiedene Anforderungen

Special features

Color-Rendering-Index CRI-80

IP-65

Lifespan 50000-L80

LED

Pendant

Risk group RG-1

Impact Protection IK10

Technical specifications

General

ETIM-class:

Pendant luminaire

Lamp type:

LED exchangeable

Lamp holder:

None

Housing material:

Aluminium

Housing colour:

Black

Material cover:

Plastic, transparent

Type of grid:

None

Voltage type:

Type of control gear:

LED operating device current-controlled

Light distributor:

Other

Reflector:

None

Light distribution:

Symmetric

Colour consistency (McAdam ellipse):

SDCM4

Light outlet:

Direct

Energy efficiency class of the light source according to EU regulation 2019/2015:

Degree of protection (IP):

IP65

Impact strength:

IK10

Protection class according to IEC 61140:

Emergency power supply system:

None

Emergency function monitoring system:

None

Filament test according to IEC 60695-2-11:

650 °C - 30 s

Colour rendering index CRI:

80-89

Colour of light adjustable:

Positions

Luminous flux adjustable:

Positions

Beam angle adjustable:

Type of wiring:

Ending

Connection type:

Other

Energy efficiency class:

Rated lifetime L70/B50 at 25 °C:

50000 h

Colour temperature:

4000 K

Conductor cross section:

1 mm²

Beam angle:

90 °

Max. system power:

200 W

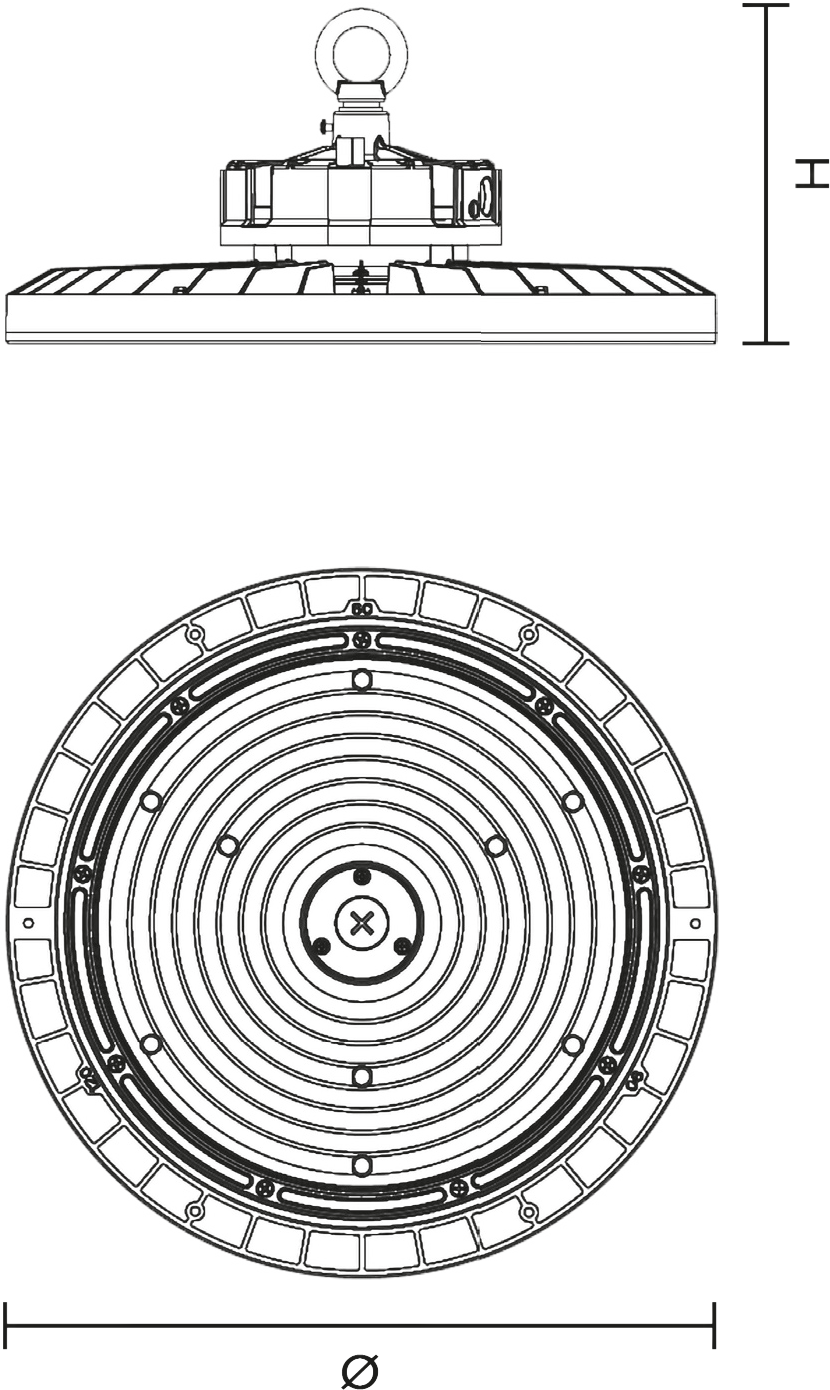

Diameter:

320 mm

Height/depth:

151 mm

Rated luminous flux according to IEC 62722-2- 1:

34300 lm

Downloads

Datenblatt_LED_Hallen_Pendelleuchte_mit_Linsenoptik___HBE_einstellbar___de_en_2025_09.pdf Montageanleitung_LED_Hallen_Pendelleuchte___HBE_einstellbar__de_en__2025_08.pdf

All versions

Type	Colour temperature	Beam angle	Max. system power	Diameter	Rated luminous flux according to IEC 62722-2- 1	Product nr.
Type LED High Bay HB200.5.90-LED, einstellb. 100/150/200W & 4000/5000/6000K IP65/ 90° /RA>80	Colour temperature 4000 K	Beam angle 90 °	Max. system power 200 W	Diameter 320 mm	Rated luminous flux according to IEC 62722-2- 1 34300 lm	Product nr. LHB300042
LED High Bay HB200.5.90-LED, einstellb. 100/150/200W & 4000/5000/6000K IP65/ 90° /RA>80 Diameter: 320 mm, Colour temperature: 4000 K, Max. system power: 200 W, Rated luminous flux according to IEC 62722-2- 1: 34300 lm, Beam angle: 90 ° Product-Nr.: LHB300042 Diameter: 320 mm Colour temperature: 4000 K Max. system power: 200 W Rated luminous flux according to IEC 62722-2- 1: 34300 lm Beam angle: 90 ° Price only for registered users Log in Product data sheet To product
