LED Mastleuchte MML 151.4 151W/22500lm/4000K/CRI>70 795x305x100mm/Ø 60/160°

Montageanleitung_LED_Mastansatz__bzw.__aufsatzleuchte___MML__de_en__2025_10.pdf

Außenleuchten - MML

Colour temperature: 4000 K, Max. system power: 151 W, Rated luminous flux according to IEC 62722-2- 1: 22500 lm, Beam angle: 160 °

Product nr.: 990160

See all versions

Max. system power

Rated luminous flux according to IEC 62722-2- 1

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

Wetterfest – widerstandsfähig gegen äußere Einflüsse

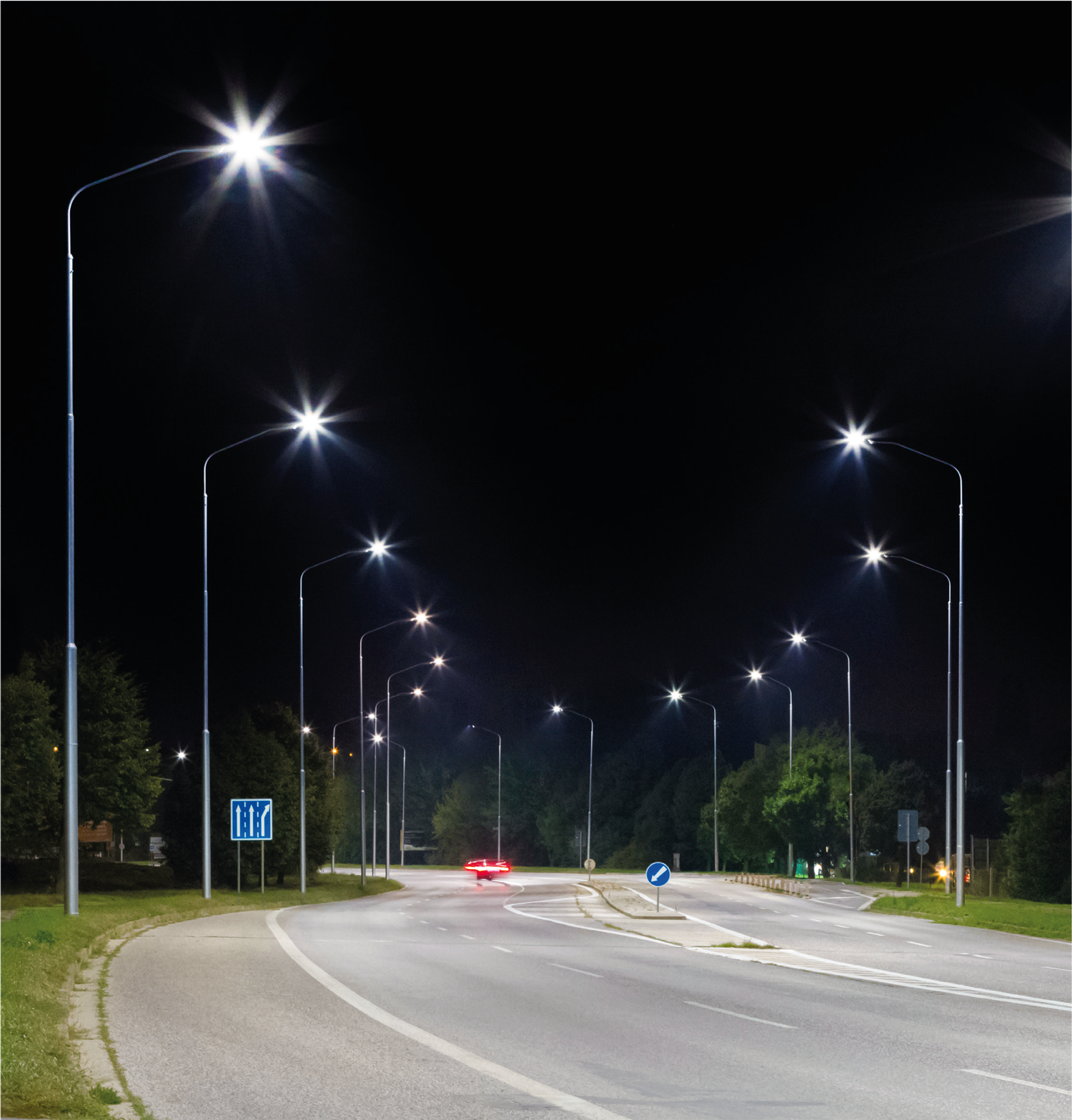

Ideal für die gleichmäßige und normgerechte Beleuchtung im öffentlichen Raum
Auch in naturnahen Bereichen einsetzbar, dank optional insektenschonender Lichtfarben
Anpassbar an Projektanforderungen
Präsenzmelder und Tageslichtsensor integrierbar
Schnelle und sichere Installation an Standard-Mastaufnahmen

Special features

Connected loads 220-240 V, 50-60 Hz

Color-Rendering-Index CRI-70

IP-66

Lifespan 100000-L70

LED

Pole-top luminaire

Pole lamp

Risk group RG-0

Impact Protection IK10

Ambient temperature -25°+45°

Technical specifications

General

ETIM-class:

Luminaire for streets and places

Mounting method:

Post top/side entry

Lamp type:

LED exchangeable

Housing material:

Aluminium

Surface protection:

Powder coating

Housing colour:

Grey

Material cover:

Glass transparent

Voltage type:

Type of control gear:

LED operating device current-controlled

Light distributor:

Diffuser lens/optic/panel

Colour consistency (McAdam ellipse):

SDCM3

Degree of protection (IP):

IP66

Impact strength:

IK10

Protection class according to IEC 61140:

Remote control:

None

Colour rendering index CRI:

70-79

Type of wiring:

Ending

Connection type:

Other

Type of connection for sensor/communication module:

None

Rated lifetime L70/B50 at 25 °C:

100000 h

Colour temperature:

4000 K

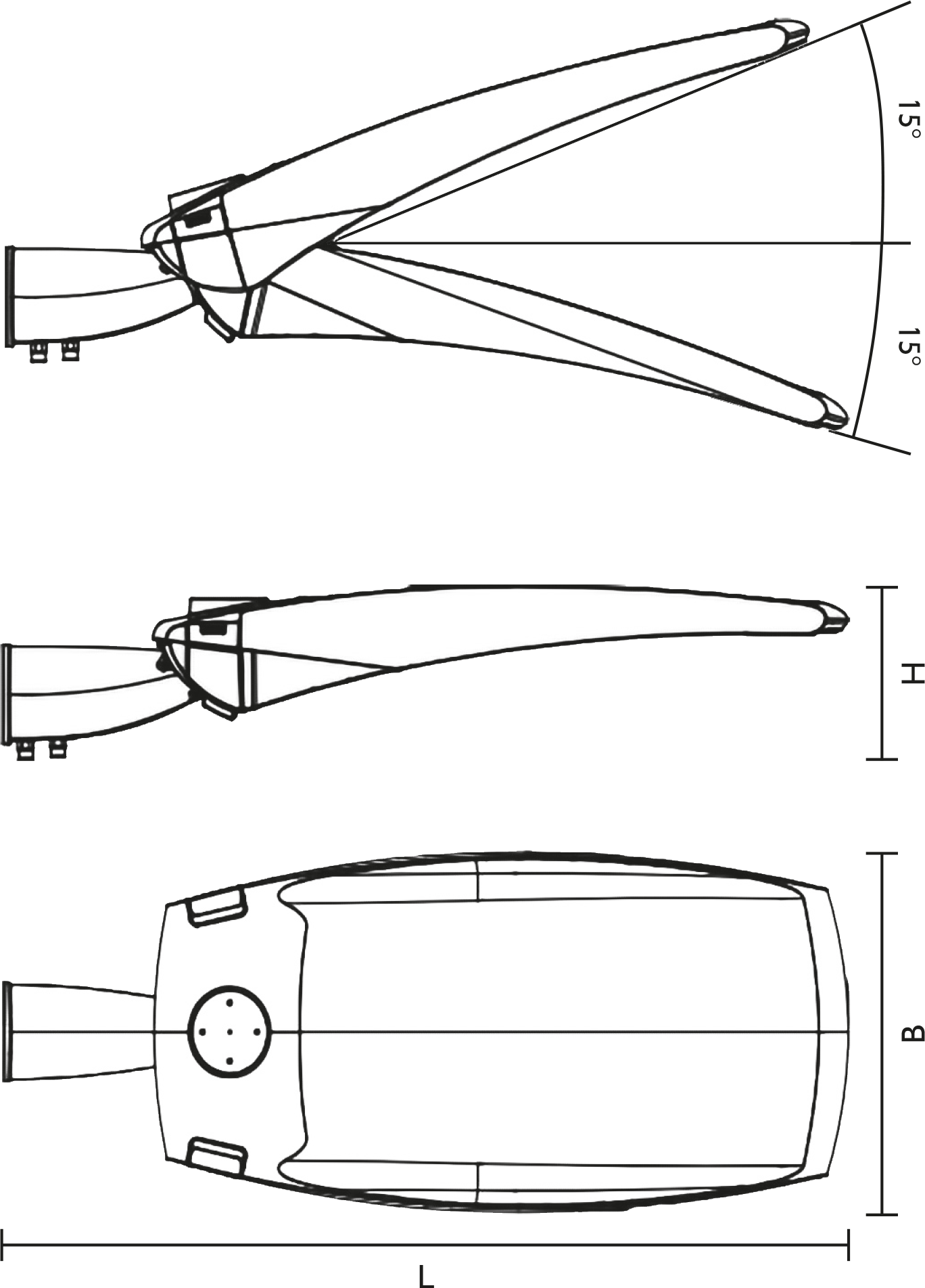

Height/depth:

100 mm

Width:

305 mm

Length:

795 mm

Max. system power:

151 W

Rated luminous flux according to IEC 62722-2- 1:

22500 lm

Beam angle:

160 °

Downloads

Montageanleitung_LED_Mastansatz__bzw.__aufsatzleuchte___MML__de_en__2025_10.pdf

All versions

Type	Colour temperature	Max. system power	Rated luminous flux according to IEC 62722-2- 1	Beam angle	Product nr.
Type LED Mastleuchte MML 151.4 151W/22500lm/4000K/CRI>70 795x305x100mm/Ø 60/160°	Colour temperature 4000 K	Max. system power 151 W	Rated luminous flux according to IEC 62722-2- 1 22500 lm	Beam angle 160 °	Product nr. 990160
LED Mastleuchte MML 151.4 151W/22500lm/4000K/CRI>70 795x305x100mm/Ø 60/160° Colour temperature: 4000 K, Max. system power: 151 W, Rated luminous flux according to IEC 62722-2- 1: 22500 lm, Beam angle: 160 ° Product-Nr.: 990160 Colour temperature: 4000 K Max. system power: 151 W Rated luminous flux according to IEC 62722-2- 1: 22500 lm Beam angle: 160 ° Price only for registered users Log in To product

Type LED Mastleuchte MML 107.4 107W/15200lm/4000K/CRI>70 655x260x100mm/Ø 60/160°	Colour temperature 4000 K	Max. system power 107 W	Rated luminous flux according to IEC 62722-2- 1 15200 lm	Beam angle 160 °	Product nr. 990159
LED Mastleuchte MML 107.4 107W/15200lm/4000K/CRI>70 655x260x100mm/Ø 60/160° Colour temperature: 4000 K, Max. system power: 107 W, Rated luminous flux according to IEC 62722-2- 1: 15200 lm, Beam angle: 160 ° Product-Nr.: 990159 Colour temperature: 4000 K Max. system power: 107 W Rated luminous flux according to IEC 62722-2- 1: 15200 lm Beam angle: 160 ° Price only for registered users Log in To product

Type LED Mastleuchte MML 63.4 63W/8800lm/4000K/CRI>70 565x210x100mm/Ø 60/160°	Colour temperature 4000 K	Max. system power 63 W	Rated luminous flux according to IEC 62722-2- 1 8800 lm	Beam angle 160 °	Product nr. 990157
LED Mastleuchte MML 63.4 63W/8800lm/4000K/CRI>70 565x210x100mm/Ø 60/160° Colour temperature: 4000 K, Max. system power: 63 W, Rated luminous flux according to IEC 62722-2- 1: 8800 lm, Beam angle: 160 ° Product-Nr.: 990157 Colour temperature: 4000 K Max. system power: 63 W Rated luminous flux according to IEC 62722-2- 1: 8800 lm Beam angle: 160 ° Price only for registered users Log in To product

Type LED Mastleuchte MML 47.4 47W/6800lm/4000K/CRI>70 565x210x100mm/Ø 60/160°	Colour temperature 4000 K	Max. system power 47 W	Rated luminous flux according to IEC 62722-2- 1 6800 lm	Beam angle 160 °	Product nr. 990156
LED Mastleuchte MML 47.4 47W/6800lm/4000K/CRI>70 565x210x100mm/Ø 60/160° Colour temperature: 4000 K, Max. system power: 47 W, Rated luminous flux according to IEC 62722-2- 1: 6800 lm, Beam angle: 160 ° Product-Nr.: 990156 Colour temperature: 4000 K Max. system power: 47 W Rated luminous flux according to IEC 62722-2- 1: 6800 lm Beam angle: 160 ° Price only for registered users Log in To product

Type LED Mastleuchte MML 74.4 74W/11600lm/4000K/CRI>70 655x260x100mm/Ø 60/160°	Colour temperature 4000 K	Max. system power 74 W	Rated luminous flux according to IEC 62722-2- 1 11600 lm	Beam angle 160 °	Product nr. 990158
LED Mastleuchte MML 74.4 74W/11600lm/4000K/CRI>70 655x260x100mm/Ø 60/160° Colour temperature: 4000 K, Max. system power: 74 W, Rated luminous flux according to IEC 62722-2- 1: 11600 lm, Beam angle: 160 ° Product-Nr.: 990158 Colour temperature: 4000 K Max. system power: 74 W Rated luminous flux according to IEC 62722-2- 1: 11600 lm Beam angle: 160 ° Price only for registered users Log in To product

Type LED Mastleuchte MML 18.4 18W/2700lm/4000K/CRI>70 565x210x100mm/Ø 60/160°	Colour temperature 4000 K	Max. system power 18 W	Rated luminous flux according to IEC 62722-2- 1 2700 lm	Beam angle 160 °	Product nr. 990154
LED Mastleuchte MML 18.4 18W/2700lm/4000K/CRI>70 565x210x100mm/Ø 60/160° Colour temperature: 4000 K, Max. system power: 18 W, Rated luminous flux according to IEC 62722-2- 1: 2700 lm, Beam angle: 160 ° Product-Nr.: 990154 Colour temperature: 4000 K Max. system power: 18 W Rated luminous flux according to IEC 62722-2- 1: 2700 lm Beam angle: 160 ° Price only for registered users Log in To product

Type LED Mastleuchte MML 31.4 31W/4400lm/4000K/CRI>70 565x210x100mm/Ø 60/160°	Colour temperature 4000 K	Max. system power 31 W	Rated luminous flux according to IEC 62722-2- 1 4400 lm	Beam angle 160 °	Product nr. 990155
LED Mastleuchte MML 31.4 31W/4400lm/4000K/CRI>70 565x210x100mm/Ø 60/160° Colour temperature: 4000 K, Max. system power: 31 W, Rated luminous flux according to IEC 62722-2- 1: 4400 lm, Beam angle: 160 ° Product-Nr.: 990155 Colour temperature: 4000 K Max. system power: 31 W Rated luminous flux according to IEC 62722-2- 1: 4400 lm Beam angle: 160 ° Price only for registered users Log in To product
