ETIM-class:

Luminaire for streets and places

Mounting method:

Post top/side entry

Lamp type:

LED exchangeable

Lamp holder:

None

Housing material:

Aluminium

Surface protection:

Powder coating

Housing colour:

Grey

Material cover:

Glass transparent

Voltage type:

AC

Type of control gear:

LED operating device current-controlled

Light distributor:

Diffuser lens/optic/panel

Colour consistency (McAdam ellipse):

SDCM3

Energy efficiency class of the light source according to EU regulation 2019/2015:

C

Degree of protection (IP):

IP66

Impact strength:

IK10

Protection class according to IEC 61140:

I

Remote control:

None

Colour rendering index CRI:

80-89

Type of wiring:

Ending

Connection type:

Other

Rated lifetime L70/B50 at 25 °C:

100000 h

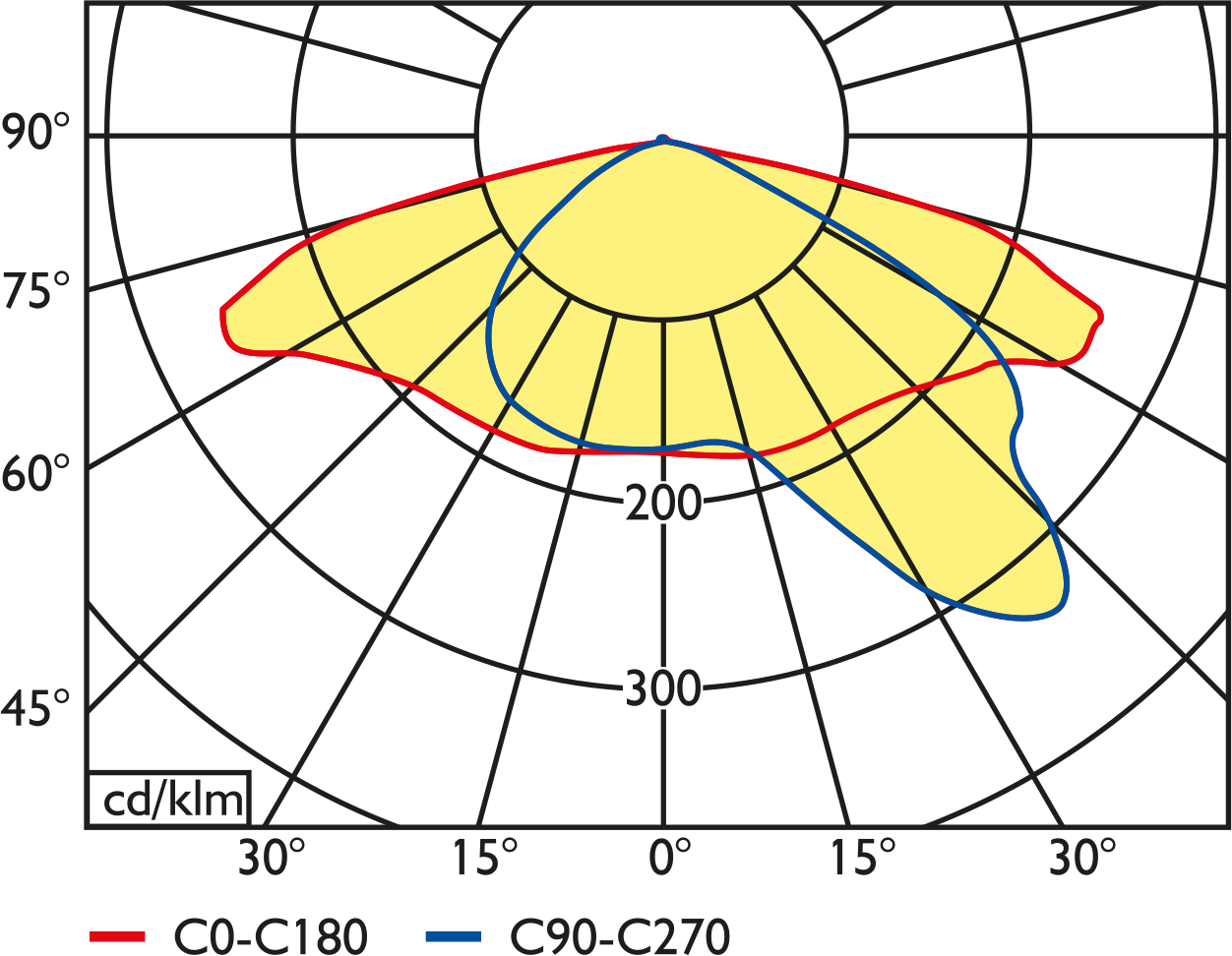

Beam angle:

150 °

Conductor cross section:

1 mm²

Cable length:

0,34 m

Colour temperature:

4000 K

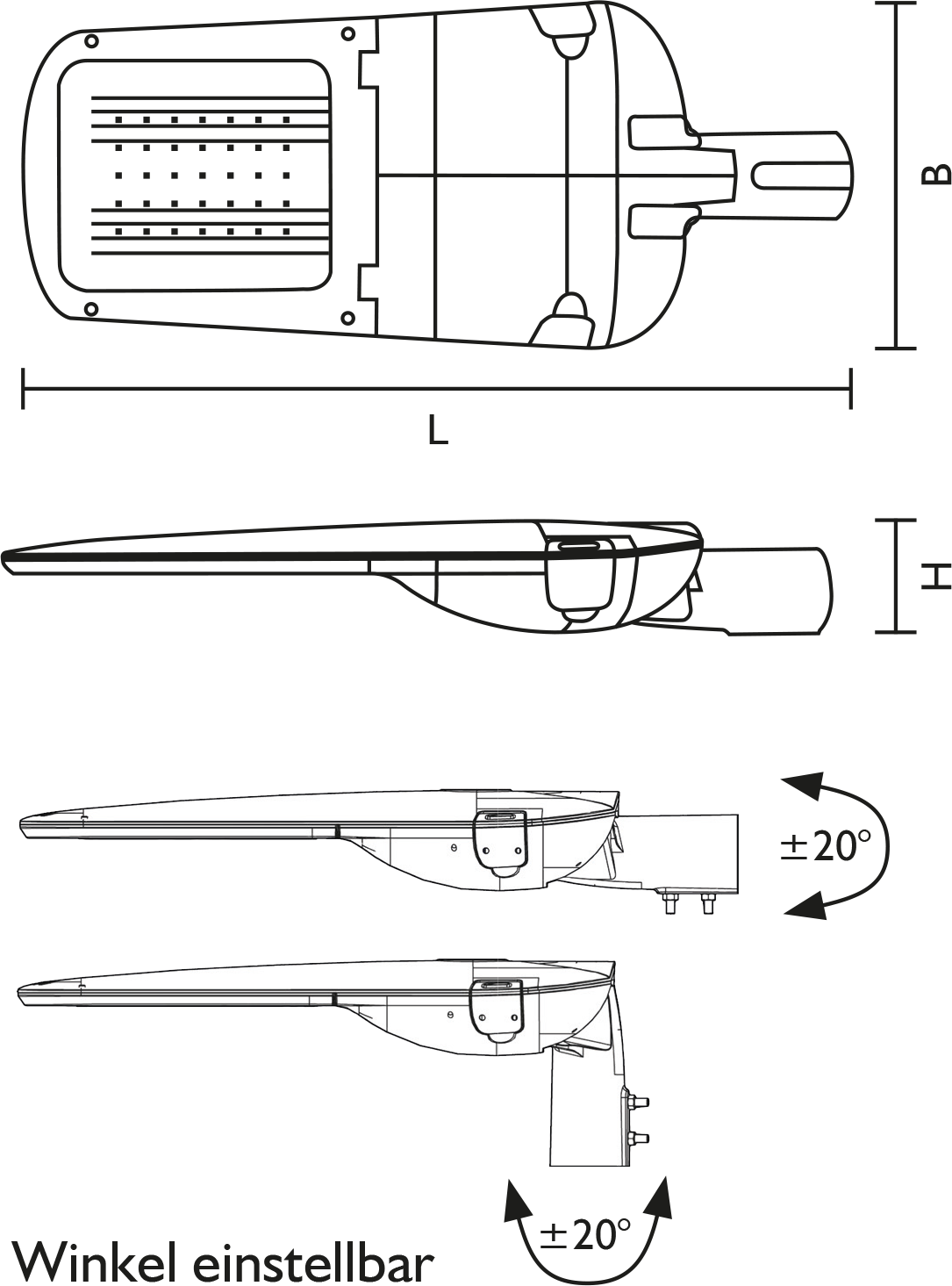

Width:

310 mm

Length:

720 mm

Height/depth:

100 mm

Max. system power:

89 W

Rated luminous flux according to IEC 62722-2- 1:

13440 lm
