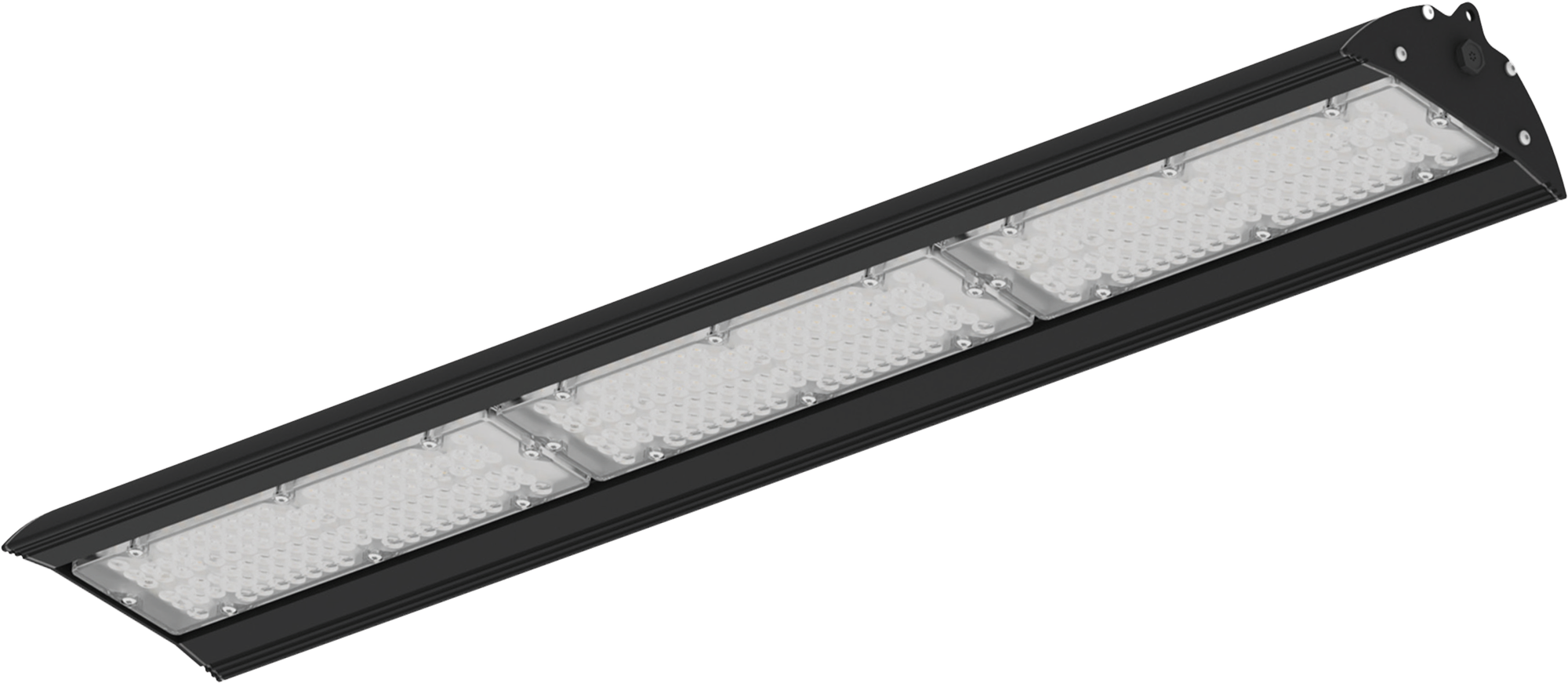

LED Pendell. HBL194.4.90.S 194W/34090lm/4000K/IP65 1305x170x75 mm/90°/CRI>80

Montageanleitung_LED_Linear_Hallen_Pendelleuchte___HBL__de_en__2025_10.pdf

Hallen-Pendelleuchten - HBL

Length: 1305 mm, Colour temperature: 4000 K, Max. system power: 194 W, Rated luminous flux according to IEC 62722-2- 1: 34090 lm, Beam angle: 90 °

Product nr.: LHB300094

See all versions

Length

Colour temperature

Max. system power

Rated luminous flux according to IEC 62722-2- 1

Beam angle

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

Robuste Hallenleuchte für anspruchsvolle Industrie- und Logistikanwendungen

Optimiert für große Höhen: leistungsstarkes Licht mit präziser Lichtverteilung (30° / 60° / 90°) - ideal für Produktionshallen und Lager
Hoher Output bei exzellenter Effizienz – auch für energieintensive Umgebungen geeignet
Robustes Aluminiumgehäuse: korrosionsbeständig, stoßfest und für den Dauerbetrieb ausgelegt
Anbau- und Pendelmontage möglich: anpassbar an verschiedene Hallenstrukturen und Deckenhöhen
Schutzart IP65: staubdicht und strahlwasser-geschützt – zuverlässig in rauen Industrieumgebungen

Special features

186 lm/W

50/60 Hz

220/240 V

Surface-mounted luminaire

Color-Rendering-Index CRI-80

IP-65

Lifespan 100000-L80

LED

Pendant

Risk group RG-1

Color Consistency SDCM-3

Sconce

Technical specifications

General

ETIM-class:

Pendant luminaire

Lamp type:

LED exchangeable

Housing material:

Aluminium

Housing colour:

Black

Material cover:

Plastic, structured

Type of grid:

None

Voltage type:

Type of control gear:

LED operating device current-controlled

Light distributor:

Diffuser lens/optic/panel

Reflector:

None

Light distribution:

Symmetric

Colour consistency (McAdam ellipse):

SDCM3

Light outlet:

Direct

Degree of protection (IP):

IP65

Impact strength:

IK08

Protection class according to IEC 61140:

Emergency function monitoring system:

None

Filament test according to IEC 60695-2-11:

650 °C - 30 s

Colour rendering index CRI:

80-89

Colour of light adjustable:

Luminous flux adjustable:

Beam angle adjustable:

Type of wiring:

Ending

Connection type:

Other

Colour temperature:

4000 K

Beam angle:

90 °

Height/depth:

75 mm

Rated lifetime L70/B50 at 25 °C:

100000 h

Max. system power:

194 W

Rated luminous flux according to IEC 62722-2- 1:

34090 lm

Width:

170 mm

Length:

1305 mm

Downloads

Montageanleitung_LED_Linear_Hallen_Pendelleuchte___HBL__de_en__2025_10.pdf

All versions

Type	Colour temperature	Beam angle	Max. system power	Rated luminous flux according to IEC 62722-2- 1	Length	Product nr.
Type LED Pendell. HBL97.4.90.B 97W/17045lm/4000K/IP65 350x345x75 mm/90°/CRI>80	Colour temperature 4000 K	Beam angle 90 °	Max. system power 97 W	Rated luminous flux according to IEC 62722-2- 1 17045 lm	Length 350 mm	Product nr. LHB300095
LED Pendell. HBL97.4.90.B 97W/17045lm/4000K/IP65 350x345x75 mm/90°/CRI>80 Length: 350 mm, Colour temperature: 4000 K, Max. system power: 97 W, Rated luminous flux according to IEC 62722-2- 1: 17045 lm, Beam angle: 90 ° Product-Nr.: LHB300095 Length: 350 mm Colour temperature: 4000 K Max. system power: 97 W Rated luminous flux according to IEC 62722-2- 1: 17045 lm Beam angle: 90 ° Price only for registered users Log in To product

Type LED Pendell. HBL194.4.90.B 194W/34090lm/4000K/IP65 665x345x75 mm/90°/CRI>80	Colour temperature 4000 K	Beam angle 90 °	Max. system power 194 W	Rated luminous flux according to IEC 62722-2- 1 34090 lm	Length 665 mm	Product nr. LHB300096
LED Pendell. HBL194.4.90.B 194W/34090lm/4000K/IP65 665x345x75 mm/90°/CRI>80 Length: 665 mm, Colour temperature: 4000 K, Max. system power: 194 W, Rated luminous flux according to IEC 62722-2- 1: 34090 lm, Beam angle: 90 ° Product-Nr.: LHB300096 Length: 665 mm Colour temperature: 4000 K Max. system power: 194 W Rated luminous flux according to IEC 62722-2- 1: 34090 lm Beam angle: 90 ° Price only for registered users Log in To product

Type LED Pendell. HBL48.4.90.S 48W/8525lm/4000K/IP65 350x170x75 mm/90°/CRI>80	Colour temperature 4000 K	Beam angle 90 °	Max. system power 48 W	Rated luminous flux according to IEC 62722-2- 1 8525 lm	Length 350 mm	Product nr. LHB300090
LED Pendell. HBL48.4.90.S 48W/8525lm/4000K/IP65 350x170x75 mm/90°/CRI>80 Length: 350 mm, Colour temperature: 4000 K, Max. system power: 48 W, Rated luminous flux according to IEC 62722-2- 1: 8525 lm, Beam angle: 90 ° Product-Nr.: LHB300090 Length: 350 mm Colour temperature: 4000 K Max. system power: 48 W Rated luminous flux according to IEC 62722-2- 1: 8525 lm Beam angle: 90 ° Price only for registered users Log in To product

Type LED Pendell. HBL97.4.90.S 97W/17045lm/4000K/IP65 665x170x75 mm/90°/CRI>80	Colour temperature 4000 K	Beam angle 90 °	Max. system power 97 W	Rated luminous flux according to IEC 62722-2- 1 17045 lm	Length 665 mm	Product nr. LHB300092
LED Pendell. HBL97.4.90.S 97W/17045lm/4000K/IP65 665x170x75 mm/90°/CRI>80 Length: 665 mm, Colour temperature: 4000 K, Max. system power: 97 W, Rated luminous flux according to IEC 62722-2- 1: 17045 lm, Beam angle: 90 ° Product-Nr.: LHB300092 Length: 665 mm Colour temperature: 4000 K Max. system power: 97 W Rated luminous flux according to IEC 62722-2- 1: 17045 lm Beam angle: 90 ° Price only for registered users Log in To product

Type LED Pendell. HBL194.4.90.S 194W/34090lm/4000K/IP65 1305x170x75 mm/90°/CRI>80	Colour temperature 4000 K	Beam angle 90 °	Max. system power 194 W	Rated luminous flux according to IEC 62722-2- 1 34090 lm	Length 1305 mm	Product nr. LHB300094
LED Pendell. HBL194.4.90.S 194W/34090lm/4000K/IP65 1305x170x75 mm/90°/CRI>80 Length: 1305 mm, Colour temperature: 4000 K, Max. system power: 194 W, Rated luminous flux according to IEC 62722-2- 1: 34090 lm, Beam angle: 90 ° Product-Nr.: LHB300094 Length: 1305 mm Colour temperature: 4000 K Max. system power: 194 W Rated luminous flux according to IEC 62722-2- 1: 34090 lm Beam angle: 90 ° Price only for registered users Log in To product

Type LED Pendell. HBL295.4.90.B 295W/51665lm/4000K/IP65 985x345x75 mm/90°/CRI>80	Colour temperature 4000 K	Beam angle 90 °	Max. system power 295 W	Rated luminous flux according to IEC 62722-2- 1 51665 lm	Length 985 mm	Product nr. LHB300097
LED Pendell. HBL295.4.90.B 295W/51665lm/4000K/IP65 985x345x75 mm/90°/CRI>80 Length: 985 mm, Colour temperature: 4000 K, Max. system power: 295 W, Rated luminous flux according to IEC 62722-2- 1: 51665 lm, Beam angle: 90 ° Product-Nr.: LHB300097 Length: 985 mm Colour temperature: 4000 K Max. system power: 295 W Rated luminous flux according to IEC 62722-2- 1: 51665 lm Beam angle: 90 ° Price only for registered users Log in To product

Type LED Pendell. HBL68.4.90.S 68W/12670lm/4000K/IP65 665x170x75 mm/90°/CRI>80	Colour temperature 4000 K	Beam angle 90 °	Max. system power 68 W	Rated luminous flux according to IEC 62722-2- 1 12670 lm	Length 665 mm	Product nr. LHB300091
LED Pendell. HBL68.4.90.S 68W/12670lm/4000K/IP65 665x170x75 mm/90°/CRI>80 Length: 665 mm, Colour temperature: 4000 K, Max. system power: 68 W, Rated luminous flux according to IEC 62722-2- 1: 12670 lm, Beam angle: 90 ° Product-Nr.: LHB300091 Length: 665 mm Colour temperature: 4000 K Max. system power: 68 W Rated luminous flux according to IEC 62722-2- 1: 12670 lm Beam angle: 90 ° Price only for registered users Log in To product

Type LED Pendell. HBL145.4.90.S 145W/25565lm/4000K/IP65 985x170x75 mm/90°/CRI>80	Colour temperature 4000 K	Beam angle 90 °	Max. system power 145 W	Rated luminous flux according to IEC 62722-2- 1 25565 lm	Length 985 mm	Product nr. LHB300093
LED Pendell. HBL145.4.90.S 145W/25565lm/4000K/IP65 985x170x75 mm/90°/CRI>80 Length: 985 mm, Colour temperature: 4000 K, Max. system power: 145 W, Rated luminous flux according to IEC 62722-2- 1: 25565 lm, Beam angle: 90 ° Product-Nr.: LHB300093 Length: 985 mm Colour temperature: 4000 K Max. system power: 145 W Rated luminous flux according to IEC 62722-2- 1: 25565 lm Beam angle: 90 ° Price only for registered users Log in To product

Type LED Linear Hallen-Pendelleuchte HBL200.6, 200W, 5700K, 26.000lm IP65, Linse 60x100°, RA>80	Colour temperature 5700 K	Beam angle 60 °	Max. system power 200 W	Rated luminous flux according to IEC 62722-2- 1 26000 lm	Length 1216 mm	Product nr. LHB300029
LED Linear Hallen-Pendelleuchte HBL200.6, 200W, 5700K, 26.000lm IP65, Linse 60x100°, RA>80 Length: 1216 mm, Colour temperature: 5700 K, Max. system power: 200 W, Rated luminous flux according to IEC 62722-2- 1: 26000 lm, Beam angle: 60 ° Product-Nr.: LHB300029 Length: 1216 mm Colour temperature: 5700 K Max. system power: 200 W Rated luminous flux according to IEC 62722-2- 1: 26000 lm Beam angle: 60 ° Price only for registered users Log in Product data sheet To product
