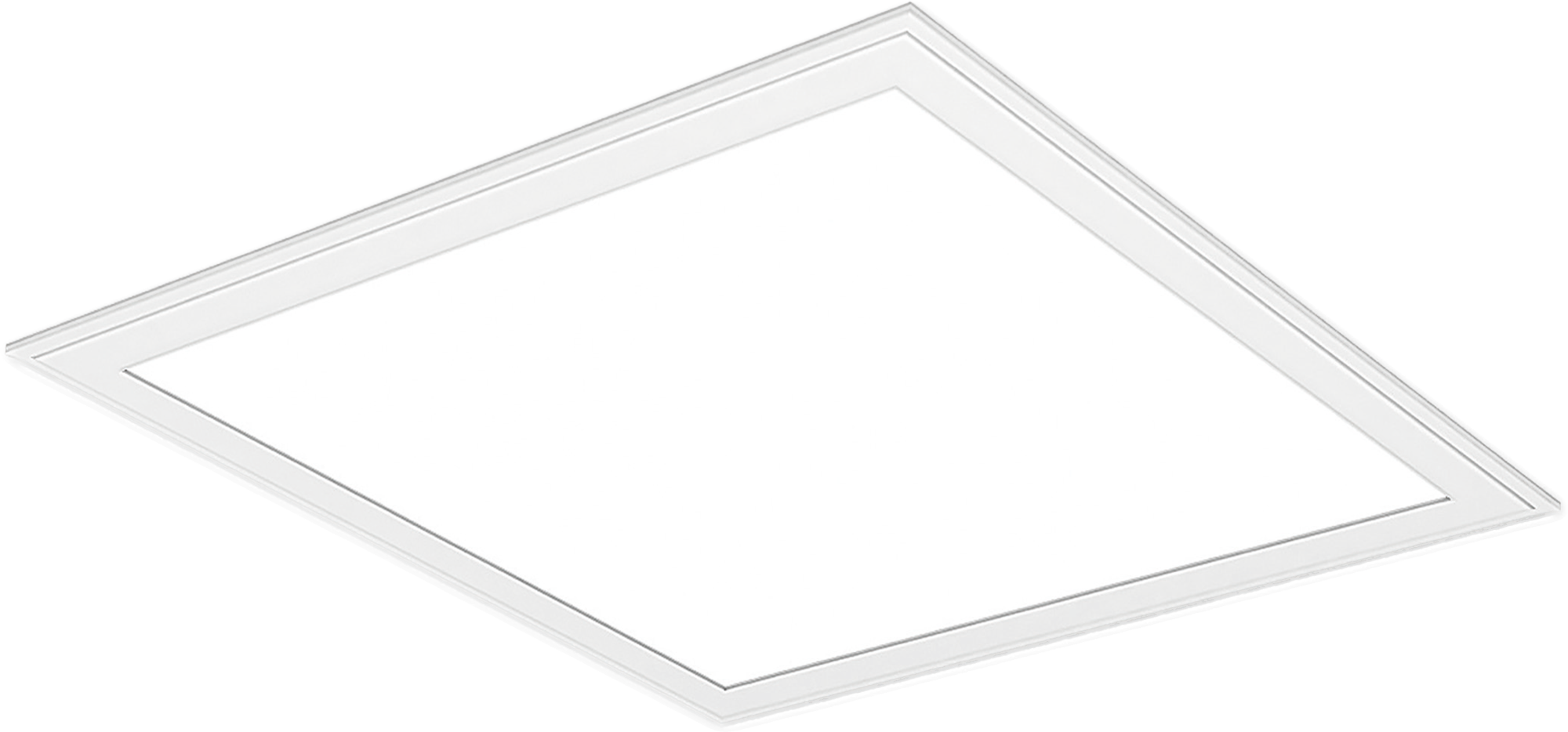

LED Reinrauml.RPRC 43.4.OPAL 43W/5100lm/4000K/IP65/M625 622x622x85mm/CRI>80

Datenblatt_LED_Reinraumleuchte___RPRC___de_en__2025_09.pdf Montageanleitung_LED_Reinraum_Einbauleuchte___RPRC__Clip_in___de_en__2025_11.pdf

Einbauleuchten - RPRC

Width: 622 mm, Length: 622 mm, Material cover: Plastic, opal, Max. system power: 43 W, Rated luminous flux according to IEC 62722-2- 1: 5100 lm

Product nr.: PL3715408

See all versions

Width

Length

Material cover

Max. system power

Rated luminous flux according to IEC 62722-2- 1

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

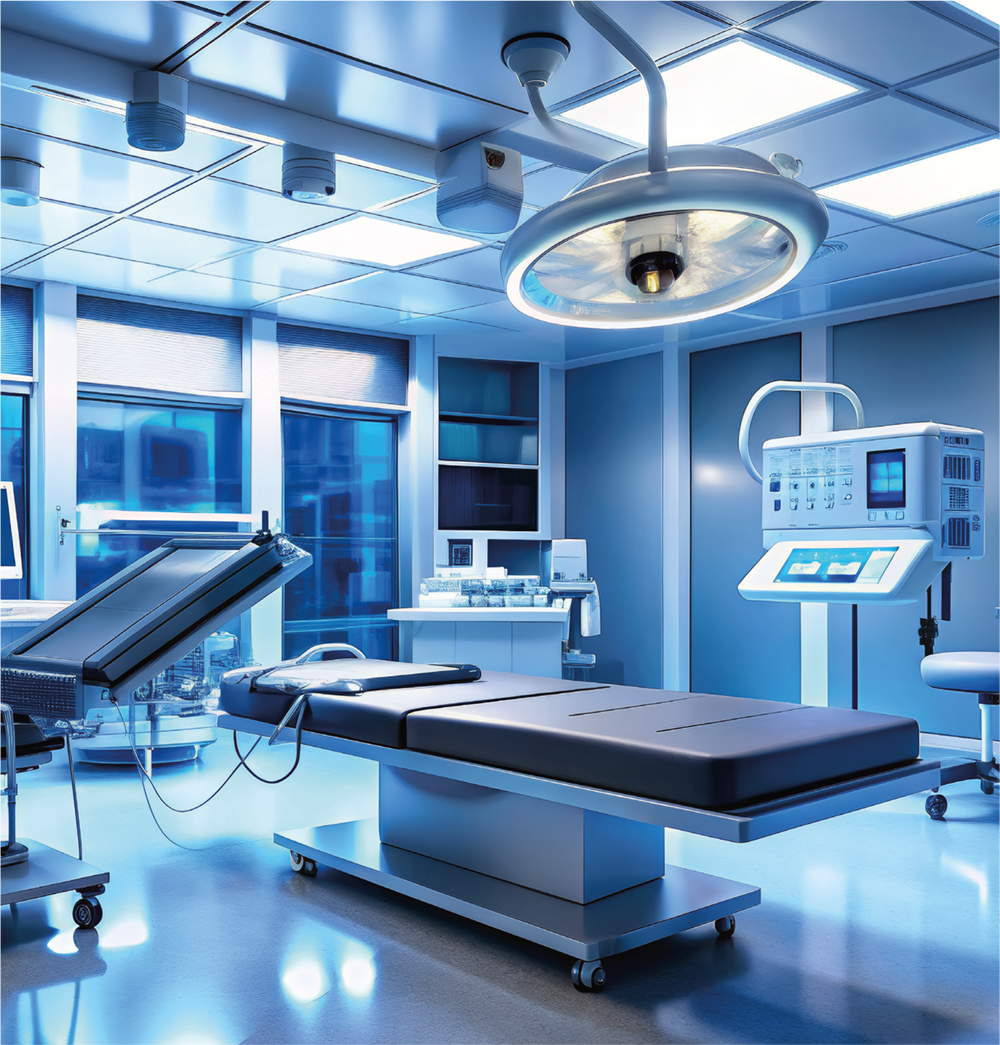

Leuchte für den Einsatz in Hygiene-Bereichen

Glatte Oberfläche für einfache Reinigung – ideal für sensible Umgebungen
Speziell entwickelt für den deckenbündigen Einbau in Reinraumdecken
Staub- und wasserdichte Bauweise mit Schutzart IP65

Special features

Connected loads 220-240 V, 50-60 Hz

Color-Rendering-Index CRI-80

Recessed

IP-65

Lifespan 100000-L80

LED

Risk group RG-1

Impact Protection IK07

Color Consistency SDCM-3

Technical specifications

General

ETIM-class:

Ceiling-/wall luminaire

Lamp type:

LED exchangeable

Housing material:

Steel

Surface protection housing:

Powder coating

Housing colour:

White

Material cover:

Plastic, opal

Type of grid:

None

Voltage type:

Type of control gear:

LED operating device current-controlled

Light distributor:

Diffuser lens/optic/panel

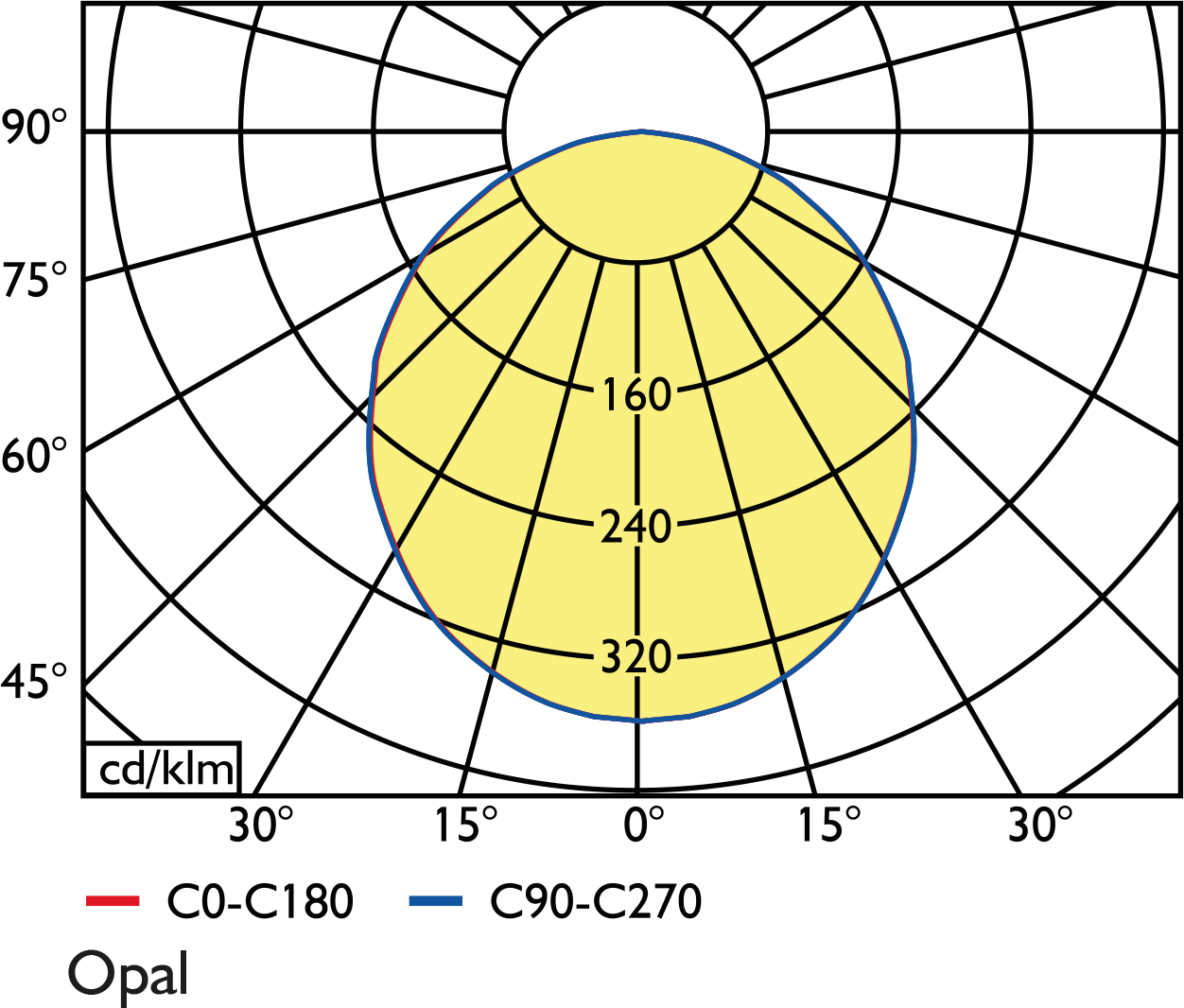

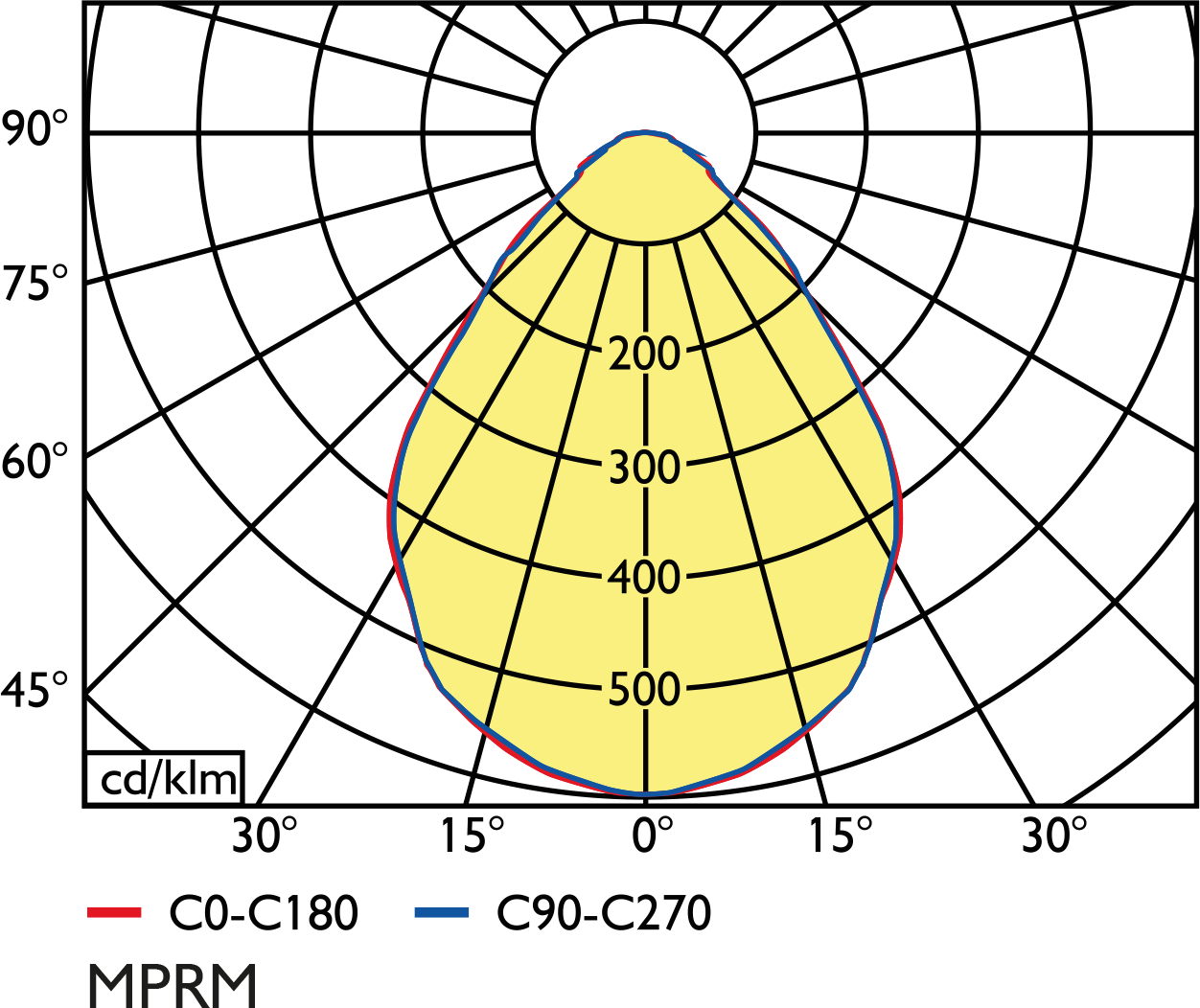

Light distribution:

Symmetric

Beam angle:

> 80° - Extreme wide beam

Colour consistency (McAdam ellipse):

SDCM3

Light outlet:

Direct

Degree of protection (IP), rear side:

Other

Degree of protection (IP), front side:

IP65

Impact strength:

IK07

Protection class according to IEC 61140:

Emergency function monitoring system:

None

Filament test according to IEC 60695-2-11:

650 °C - 30 s

Colour rendering index CRI:

80-89

Type of wiring:

Suitable for loop-through wiring

Connection type:

Push-in clamp

Photobiological safety according to EN 62471:

RG1

Colour of light adjustable:

Luminous flux adjustable:

Beam angle adjustable:

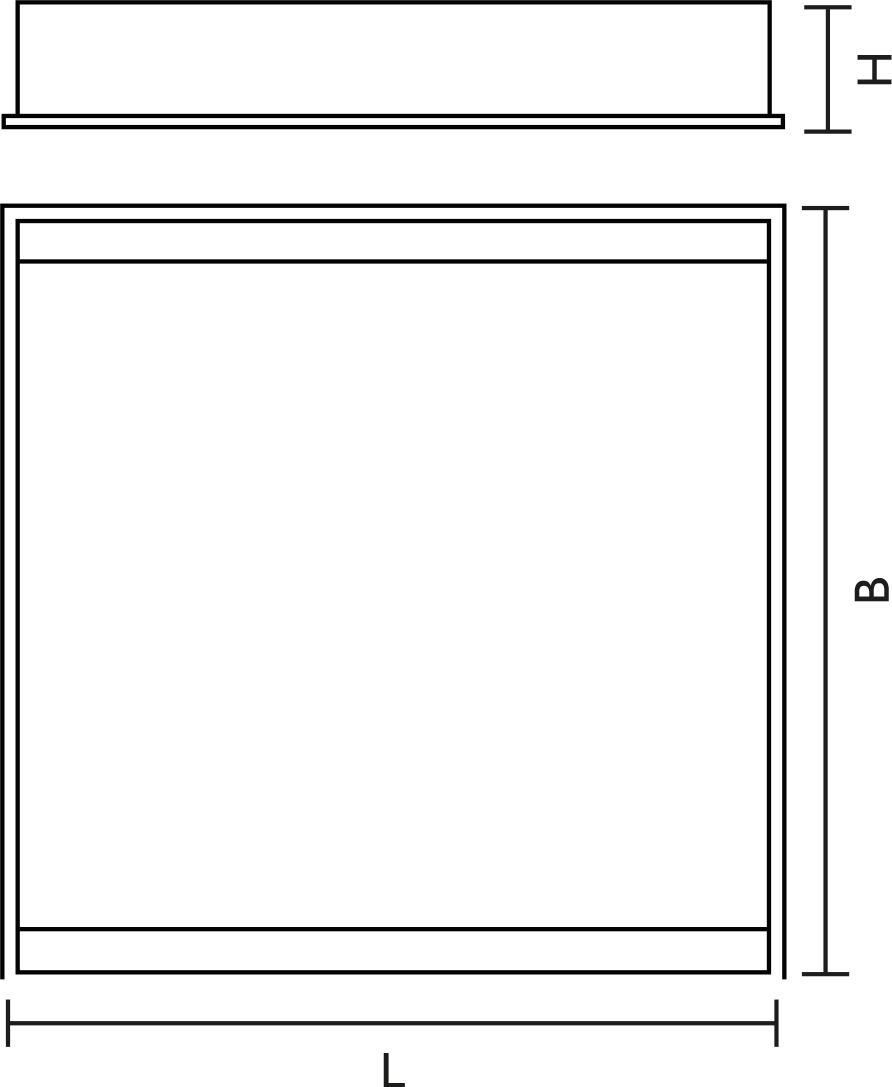

Height/depth:

85 mm

Colour temperature:

4000 K

Rated lifetime L70/B50 at 25 °C:

50000 h

Rated luminous flux according to IEC 62722-2- 1:

5100 lm

Max. system power:

43 W

Width:

622 mm

Length:

622 mm

Downloads

Datenblatt_LED_Reinraumleuchte___RPRC___de_en__2025_09.pdf Montageanleitung_LED_Reinraum_Einbauleuchte___RPRC__Clip_in___de_en__2025_11.pdf

All versions

Type	Material cover	Rated luminous flux according to IEC 62722-2- 1	Max. system power	Width	Length	Product nr.
Type LED Reinrauml.RPRC 43.4.OPAL 43W/5100lm/4000K/IP65/M625 622x622x85mm/CRI>80	Material cover Plastic, opal	Rated luminous flux according to IEC 62722-2- 1 5100 lm	Max. system power 43 W	Width 622 mm	Length 622 mm	Product nr. PL3715408
LED Reinrauml.RPRC 43.4.OPAL 43W/5100lm/4000K/IP65/M625 622x622x85mm/CRI>80 Width: 622 mm, Length: 622 mm, Material cover: Plastic, opal, Max. system power: 43 W, Rated luminous flux according to IEC 62722-2- 1: 5100 lm Product-Nr.: PL3715408 Width: 622 mm Length: 622 mm Material cover: Plastic, opal Max. system power: 43 W Rated luminous flux according to IEC 62722-2- 1: 5100 lm Price only for registered users Log in To product

Type LED Reinrauml.RPRC 43.4.MPRM 43W/6280lm/4000K/IP65/M625 622x622x85mm/CRI>80	Material cover Plastic, structured	Rated luminous flux according to IEC 62722-2- 1 6280 lm	Max. system power 43 W	Width 622 mm	Length 622 mm	Product nr. PL3715464
LED Reinrauml.RPRC 43.4.MPRM 43W/6280lm/4000K/IP65/M625 622x622x85mm/CRI>80 Width: 622 mm, Length: 622 mm, Material cover: Plastic, structured, Max. system power: 43 W, Rated luminous flux according to IEC 62722-2- 1: 6280 lm Product-Nr.: PL3715464 Width: 622 mm Length: 622 mm Material cover: Plastic, structured Max. system power: 43 W Rated luminous flux according to IEC 62722-2- 1: 6280 lm Price only for registered users Log in To product

Type LED Reinrauml.RPRC 43.4.OPAL 43W/4910lm/4000K/IP65/M625 1245x310x85mm/CRI>80	Material cover Plastic, opal	Rated luminous flux according to IEC 62722-2- 1 4910 lm	Max. system power 43 W	Width 310 mm	Length 1245 mm	Product nr. PL3715436
LED Reinrauml.RPRC 43.4.OPAL 43W/4910lm/4000K/IP65/M625 1245x310x85mm/CRI>80 Width: 310 mm, Length: 1245 mm, Material cover: Plastic, opal, Max. system power: 43 W, Rated luminous flux according to IEC 62722-2- 1: 4910 lm Product-Nr.: PL3715436 Width: 310 mm Length: 1245 mm Material cover: Plastic, opal Max. system power: 43 W Rated luminous flux according to IEC 62722-2- 1: 4910 lm Price only for registered users Log in To product

Type LED Reinrauml.RPRC 84.4.OPAL 84W/9820lm/4000K/IP65/M625 1245x622x85mm/CRI>80	Material cover Plastic, opal	Rated luminous flux according to IEC 62722-2- 1 9820 lm	Max. system power 84 W	Width 622 mm	Length 1245 mm	Product nr. PL3715422
LED Reinrauml.RPRC 84.4.OPAL 84W/9820lm/4000K/IP65/M625 1245x622x85mm/CRI>80 Width: 622 mm, Length: 1245 mm, Material cover: Plastic, opal, Max. system power: 84 W, Rated luminous flux according to IEC 62722-2- 1: 9820 lm Product-Nr.: PL3715422 Width: 622 mm Length: 1245 mm Material cover: Plastic, opal Max. system power: 84 W Rated luminous flux according to IEC 62722-2- 1: 9820 lm Price only for registered users Log in To product

Type LED Reinrauml.RPRC 43.4.MPRM 43W/6050lm/4000K/IP65/M625 1245x310x85mm/CRI>80	Material cover Plastic, structured	Rated luminous flux according to IEC 62722-2- 1 6050 lm	Max. system power 43 W	Width 310 mm	Length 1245 mm	Product nr. PL3715492
LED Reinrauml.RPRC 43.4.MPRM 43W/6050lm/4000K/IP65/M625 1245x310x85mm/CRI>80 Width: 310 mm, Length: 1245 mm, Material cover: Plastic, structured, Max. system power: 43 W, Rated luminous flux according to IEC 62722-2- 1: 6050 lm Product-Nr.: PL3715492 Width: 310 mm Length: 1245 mm Material cover: Plastic, structured Max. system power: 43 W Rated luminous flux according to IEC 62722-2- 1: 6050 lm Price only for registered users Log in To product

Type LED Reinrauml.RPRC 84.4.MPRM 84W/12120lm/4000K/IP65/M625 1245x622x85mm/CRI>80	Material cover Plastic, structured	Rated luminous flux according to IEC 62722-2- 1 12120 lm	Max. system power 84 W	Width 622 mm	Length 1245 mm	Product nr. PL3715478
LED Reinrauml.RPRC 84.4.MPRM 84W/12120lm/4000K/IP65/M625 1245x622x85mm/CRI>80 Width: 622 mm, Length: 1245 mm, Material cover: Plastic, structured, Max. system power: 84 W, Rated luminous flux according to IEC 62722-2- 1: 12120 lm Product-Nr.: PL3715478 Width: 622 mm Length: 1245 mm Material cover: Plastic, structured Max. system power: 84 W Rated luminous flux according to IEC 62722-2- 1: 12120 lm Price only for registered users Log in To product
