PLB 625.4.39 MPRM/ 28-39W M625/4000K/CRI 80 4000-5500lm, Mikroprisma

Datenblatt_LED_Einlegepanel_Backlit___PLB__de_en_2025_02.pdf Montageanleitung_LED_Einlegepanel_Backlit___PLB__de_en__2025_02.pdf

Einlegepanelleuchten - PLB

Width: 620 mm, Length: 620 mm, Material cover: Plastic, structured, Colour temperature: 4000 K, Rated luminous flux according to IEC 62722-2- 1: 5500 lm

Product nr.: LPL200121

See all versions

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

Einlegeleuchte mit hoher Effizienz

Integrierte Linsenoptiken erzeugen eine sehr homogene Leuchtfläche
Erfüllt die Richtlinien für eine besonders blendarme Beleuchtung von Bildschirmarbeitsplätzen (UGR<19)
Individuell anpassbar dank verschiedener Leistungsvarianten
Einlege- / Einbau- und Pendelmontage möglich

Special features

Connected loads 220-240 V, 50-60 Hz

Color-Rendering-Index CRI-80

Recessed

Energy Efficiency E

IP-40 room-side

Lifespan 50000-L80

LED

Pendant

Risk group RG-0

Protection class II system

Glare Rating UGR-19

Technical specifications

General

ETIM-class:

Ceiling-/wall luminaire

Lamp type:

LED exchangeable

Housing material:

Steel

Surface protection housing:

Powder coating

Housing colour:

White

Material cover:

Plastic, structured

Type of grid:

None

Voltage type:

Type of control gear:

LED operating device current-controlled

Light distributor:

Diffuser lens/optic/panel

Light distribution:

Symmetric

Beam angle:

> 80° - Extreme wide beam

Colour consistency (McAdam ellipse):

SDCM3

Light outlet:

Direct

Energy efficiency class of the light source according to EU regulation 2019/2015:

Degree of protection (IP), rear side:

IP20

Degree of protection (IP), front side:

IP40

Impact strength:

IK03

Protection class according to IEC 61140:

III

Emergency function monitoring system:

None

Filament test according to IEC 60695-2-11:

650 °C - 30 s

Colour rendering index CRI:

80-89

Type of wiring:

Ending

Connection type:

Bus

Photobiological safety according to EN 62471:

RG0

Colour of light adjustable:

Luminous flux adjustable:

Continuously variable

Beam angle adjustable:

Energy efficiency class:

Colour temperature:

4000 K

Rated lifetime L70/B50 at 25 °C:

50000 h

Max. system power:

39 W

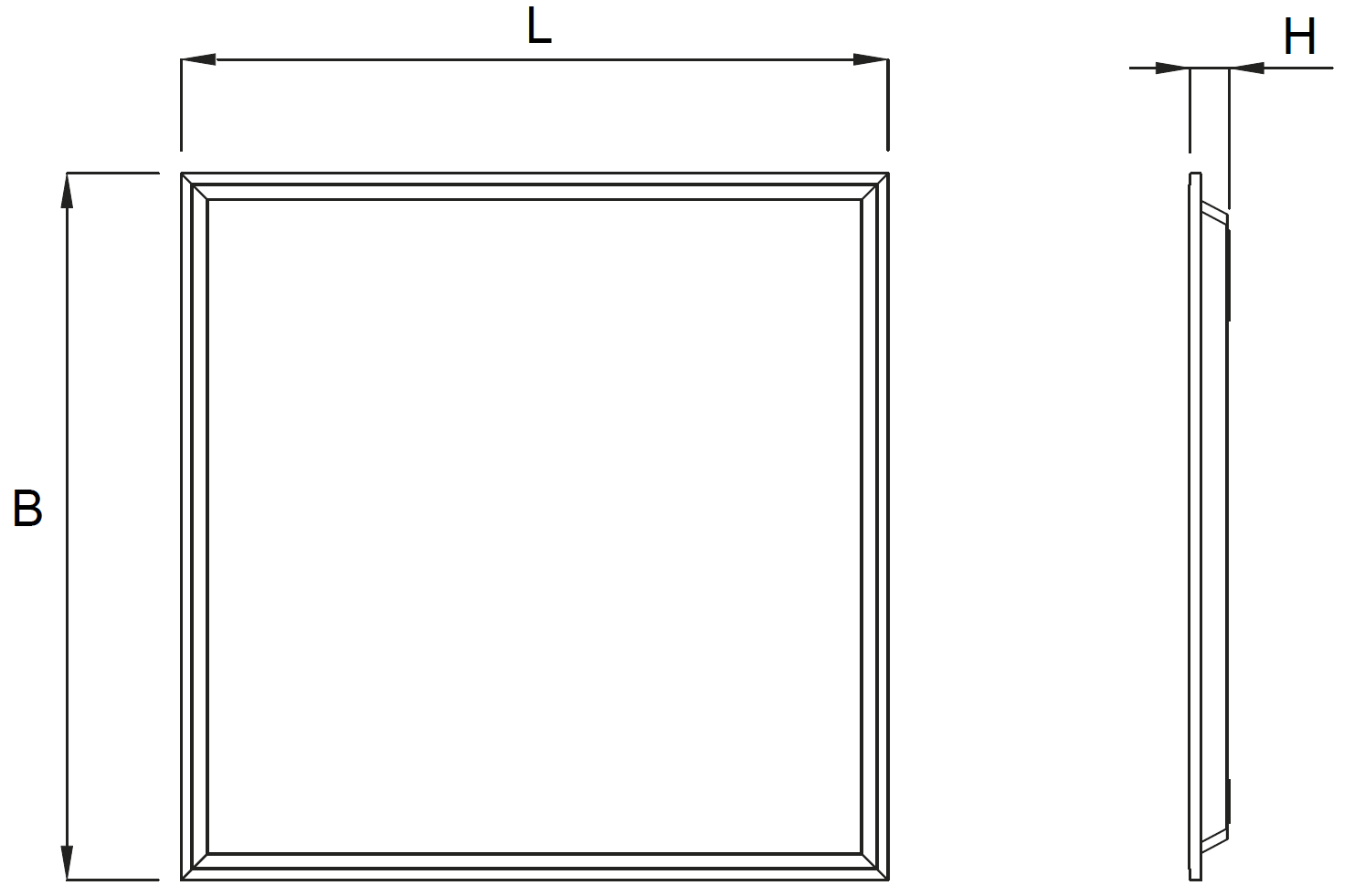

Width:

620 mm

Length:

620 mm

Height/depth:

34 mm

Rated luminous flux according to IEC 62722-2- 1:

5500 lm

Downloads

Datenblatt_LED_Einlegepanel_Backlit___PLB__de_en_2025_02.pdf Montageanleitung_LED_Einlegepanel_Backlit___PLB__de_en__2025_02.pdf

All versions

Type	Material cover	Colour temperature	Width	Length	Rated luminous flux according to IEC 62722-2- 1	Product nr.
Type PLB 625.4.39 MPRM/ 28-39W M625/4000K/CRI 80 4000-5500lm, Mikroprisma	Material cover Plastic, structured	Colour temperature 4000 K	Width 620 mm	Length 620 mm	Rated luminous flux according to IEC 62722-2- 1 5500 lm	Product nr. LPL200121
PLB 625.4.39 MPRM/ 28-39W M625/4000K/CRI 80 4000-5500lm, Mikroprisma Width: 620 mm, Length: 620 mm, Material cover: Plastic, structured, Colour temperature: 4000 K, Rated luminous flux according to IEC 62722-2- 1: 5500 lm Product-Nr.: LPL200121 Width: 620 mm Length: 620 mm Material cover: Plastic, structured Colour temperature: 4000 K Rated luminous flux according to IEC 62722-2- 1: 5500 lm Price only for registered users Log in Product data sheet To product
