TERMINAL Control Panel Trunk. F2000 halogenfree 100/100 mm grey RAL 7035/ PU: 16m

Datenblatt_F2000_HF__de___2025_07.pdf

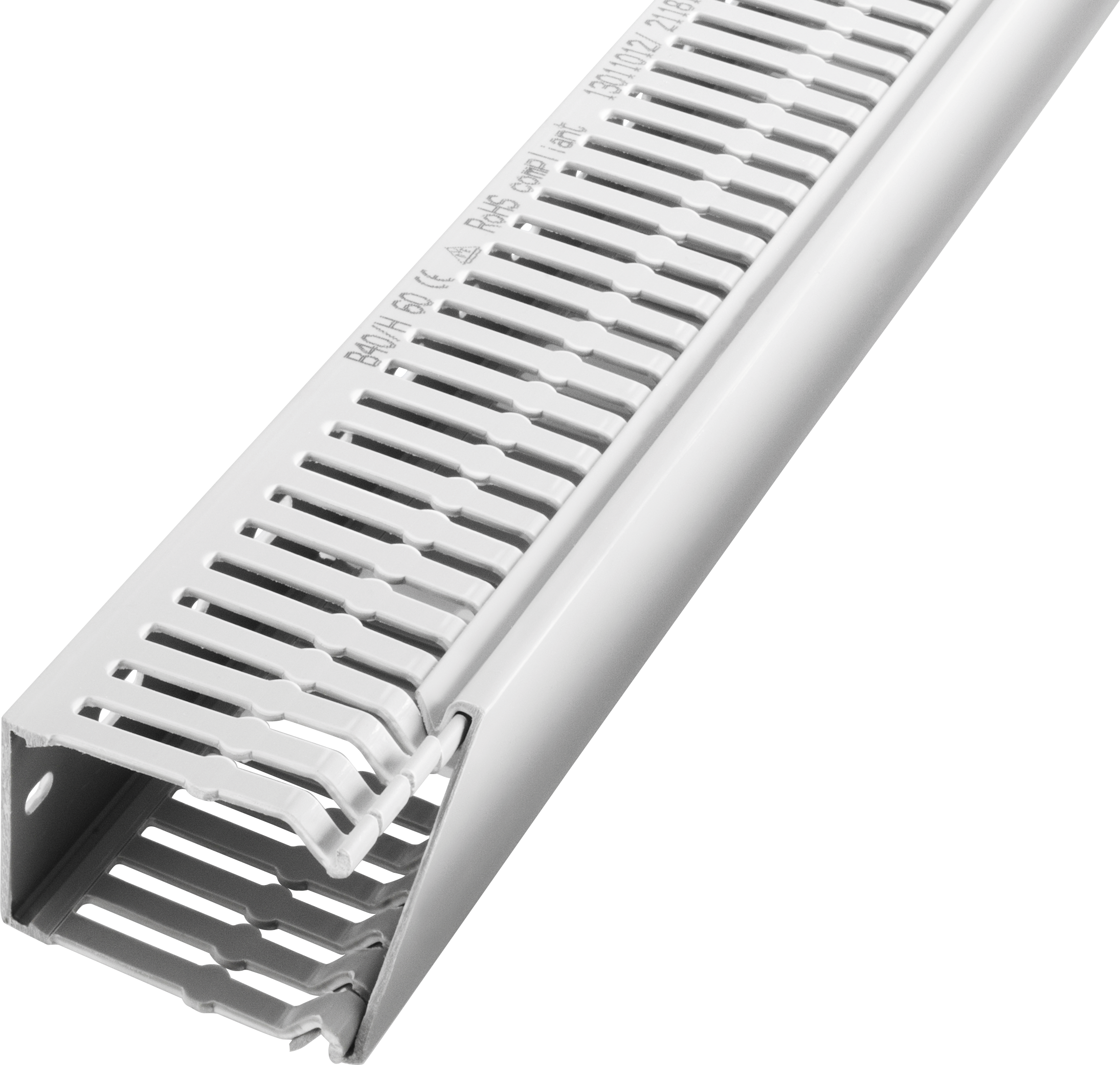

Verdrahtungskanal Terminal F2000 halogenfrei

Width: 100 mm, Height: 100 mm, Adhesive tape width: 0 mm

Product nr.: 7392-1

See all versions

Width

Height

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

Licatec Terminal F2000 halogenfrei Verdrahtungskanäle entsprechen der DIN EN 50085. Diese Serie wird aus halogenfreiem Kunststoff gem. VDE 0472, Teil 815 gefertigt. Das Material setzt im Brandfall keine toxischen Gase frei. Temperaturbeständigkeit -25° C bis + 90° C.

Besondere Merkmale:

Deckelkontur 90°
Drahtrückhaltenasen ab der Bauhöhe 60 mm
Farbe: grau, RAL 7035

Special features

C-UR-US

CE Exempt

EN-45545-HL2

ePLAN

RoHS compliant

VDE

Technical specifications

General

ETIM-class:

Slotted cable trunking system

Material:

Polycarbonate (PC)/ABS

Type of side wall:

Slotted

Type of fastening:

Bottom perforation

Colour:

Grey

Length:

2000 mm

Distance of slots:

5,5 mm

Slit width:

4,5 mm

Adhesive tape width:

0 mm

Width:

100 mm

Height:

100 mm

Usable cross section:

9091 mm²

Downloads

Datenblatt_F2000_HF__de___2025_07.pdf

All versions

Type	Adhesive tape width	Width	Height	Product nr.
Type TERMINAL Control Panel Trunk. F2000 halogenfree 30/30 mm grey RAL 7035/ PU: 64m	Adhesive tape width 0 mm	Width 30 mm	Height 30 mm	Product nr. 7358-1
TERMINAL Control Panel Trunk. F2000 halogenfree 30/30 mm grey RAL 7035/ PU: 64m Width: 30 mm, Height: 30 mm, Adhesive tape width: 0 mm Product-Nr.: 7358-1 Width: 30 mm Height: 30 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 25/40 mm grey RAL 7035/ PU: 68m	Adhesive tape width 0 mm	Width 25 mm	Height 40 mm	Product nr. 7359-1
TERMINAL Control Panel Trunk. F2000 halogenfree 25/40 mm grey RAL 7035/ PU: 68m Width: 25 mm, Height: 40 mm, Adhesive tape width: 0 mm Product-Nr.: 7359-1 Width: 25 mm Height: 40 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 40/40 mm grey RAL 7035/ PU: 52m	Adhesive tape width 0 mm	Width 40 mm	Height 40 mm	Product nr. 7361-1
TERMINAL Control Panel Trunk. F2000 halogenfree 40/40 mm grey RAL 7035/ PU: 52m Width: 40 mm, Height: 40 mm, Adhesive tape width: 0 mm Product-Nr.: 7361-1 Width: 40 mm Height: 40 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 60/40 mm grey RAL 7035/ PU: 40m	Adhesive tape width 0 mm	Width 60 mm	Height 40 mm	Product nr. 7362-1
TERMINAL Control Panel Trunk. F2000 halogenfree 60/40 mm grey RAL 7035/ PU: 40m Width: 60 mm, Height: 40 mm, Adhesive tape width: 0 mm Product-Nr.: 7362-1 Width: 60 mm Height: 40 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 25/60 mm grey RAL 7035/ PU: 44m	Adhesive tape width 0 mm	Width 25 mm	Height 60 mm	Product nr. 7369-1
TERMINAL Control Panel Trunk. F2000 halogenfree 25/60 mm grey RAL 7035/ PU: 44m Width: 25 mm, Height: 60 mm, Adhesive tape width: 0 mm Product-Nr.: 7369-1 Width: 25 mm Height: 60 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 40/60 mm grey RAL 7035/ PU: 48m	Adhesive tape width 0 mm	Width 40 mm	Height 60 mm	Product nr. 7371-1
TERMINAL Control Panel Trunk. F2000 halogenfree 40/60 mm grey RAL 7035/ PU: 48m Width: 40 mm, Height: 60 mm, Adhesive tape width: 0 mm Product-Nr.: 7371-1 Width: 40 mm Height: 60 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 60/60 mm grey RAL 7035/ PU: 36m	Adhesive tape width 0 mm	Width 60 mm	Height 60 mm	Product nr. 7372-1
TERMINAL Control Panel Trunk. F2000 halogenfree 60/60 mm grey RAL 7035/ PU: 36m Width: 60 mm, Height: 60 mm, Adhesive tape width: 0 mm Product-Nr.: 7372-1 Width: 60 mm Height: 60 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 80/60 mm grey RAL 7035/ PU: 32m	Adhesive tape width 0 mm	Width 80 mm	Height 60 mm	Product nr. 7373-1
TERMINAL Control Panel Trunk. F2000 halogenfree 80/60 mm grey RAL 7035/ PU: 32m Width: 80 mm, Height: 60 mm, Adhesive tape width: 0 mm Product-Nr.: 7373-1 Width: 80 mm Height: 60 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 25/80 mm grey RAL 7035/ PU: 40m	Adhesive tape width 0 mm	Width 25 mm	Height 80 mm	Product nr. 7379-1
TERMINAL Control Panel Trunk. F2000 halogenfree 25/80 mm grey RAL 7035/ PU: 40m Width: 25 mm, Height: 80 mm, Adhesive tape width: 0 mm Product-Nr.: 7379-1 Width: 25 mm Height: 80 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 40/80 mm grey RAL 7035/ PU: 32m	Adhesive tape width 0 mm	Width 40 mm	Height 80 mm	Product nr. 7381-1
TERMINAL Control Panel Trunk. F2000 halogenfree 40/80 mm grey RAL 7035/ PU: 32m Width: 40 mm, Height: 80 mm, Adhesive tape width: 0 mm Product-Nr.: 7381-1 Width: 40 mm Height: 80 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 60/80 mm grey RAL 7035/ PU: 36m	Adhesive tape width 0 mm	Width 60 mm	Height 80 mm	Product nr. 7382-1
TERMINAL Control Panel Trunk. F2000 halogenfree 60/80 mm grey RAL 7035/ PU: 36m Width: 60 mm, Height: 80 mm, Adhesive tape width: 0 mm Product-Nr.: 7382-1 Width: 60 mm Height: 80 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 80/80 mm grey RAL 7035/ PU: 16m	Adhesive tape width 0 mm	Width 80 mm	Height 80 mm	Product nr. 7383-1
TERMINAL Control Panel Trunk. F2000 halogenfree 80/80 mm grey RAL 7035/ PU: 16m Width: 80 mm, Height: 80 mm, Adhesive tape width: 0 mm Product-Nr.: 7383-1 Width: 80 mm Height: 80 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 100/80 mm grey RAL 7035/ PU: 16m	Adhesive tape width 0 mm	Width 100 mm	Height 80 mm	Product nr. 7384-1
TERMINAL Control Panel Trunk. F2000 halogenfree 100/80 mm grey RAL 7035/ PU: 16m Width: 100 mm, Height: 80 mm, Adhesive tape width: 0 mm Product-Nr.: 7384-1 Width: 100 mm Height: 80 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 120/80 mm grey RAL 7035/ PU: 16m	Adhesive tape width 0 mm	Width 120 mm	Height 80 mm	Product nr. 7385-1
TERMINAL Control Panel Trunk. F2000 halogenfree 120/80 mm grey RAL 7035/ PU: 16m Width: 120 mm, Height: 80 mm, Adhesive tape width: 0 mm Product-Nr.: 7385-1 Width: 120 mm Height: 80 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 30/100 mm grey RAL 7035/ PU: 32m	Adhesive tape width 0 mm	Width 30 mm	Height 100 mm	Product nr. 7390-1
TERMINAL Control Panel Trunk. F2000 halogenfree 30/100 mm grey RAL 7035/ PU: 32m Width: 30 mm, Height: 100 mm, Adhesive tape width: 0 mm Product-Nr.: 7390-1 Width: 30 mm Height: 100 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 40/100 mm grey RAL 7035/ PU: 24m	Adhesive tape width 0 mm	Width 40 mm	Height 100 mm	Product nr. 7393-1
TERMINAL Control Panel Trunk. F2000 halogenfree 40/100 mm grey RAL 7035/ PU: 24m Width: 40 mm, Height: 100 mm, Adhesive tape width: 0 mm Product-Nr.: 7393-1 Width: 40 mm Height: 100 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 60/100 mm grey RAL 7035/ PU: 24m	Adhesive tape width 0 mm	Width 60 mm	Height 100 mm	Product nr. 7391-1
TERMINAL Control Panel Trunk. F2000 halogenfree 60/100 mm grey RAL 7035/ PU: 24m Width: 60 mm, Height: 100 mm, Adhesive tape width: 0 mm Product-Nr.: 7391-1 Width: 60 mm Height: 100 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 80/100 mm grey RAL 7035/ PU: 20m	Adhesive tape width 0 mm	Width 80 mm	Height 100 mm	Product nr. 7394-1
TERMINAL Control Panel Trunk. F2000 halogenfree 80/100 mm grey RAL 7035/ PU: 20m Width: 80 mm, Height: 100 mm, Adhesive tape width: 0 mm Product-Nr.: 7394-1 Width: 80 mm Height: 100 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. F2000 halogenfree 100/100 mm grey RAL 7035/ PU: 16m	Adhesive tape width 0 mm	Width 100 mm	Height 100 mm	Product nr. 7392-1
TERMINAL Control Panel Trunk. F2000 halogenfree 100/100 mm grey RAL 7035/ PU: 16m Width: 100 mm, Height: 100 mm, Adhesive tape width: 0 mm Product-Nr.: 7392-1 Width: 100 mm Height: 100 mm Adhesive tape width: 0 mm Price only for registered users Log in To product
